Key Specifications

Key Features
• Hardwired/wireless (with RIVERRF and HALENTE concentrator) microprocessor-based control unit with 8 triple, double balanced / NC / fast on board inputs, expandable to 16 with split function
• Expandable up to 104 inputs with RIVER series concentrators
• 1 serial line
• Max 16 serial line control devices
• Up to 64 users
• Voice synthesis with 4 predefined messages
• Voice synthesis module with 64 messages (optional)
• Internal clock with backup battery
• Management of 4 areas with 4 sectors or 2 areas with 8 sectors or 1 area with 16 sectors
• 1 programmable relay output and 1 programmable output (max 100mA)
• Optional modules: GSM/GPRS modules, PSTN module, Ethernet module
• Metal housing
• Compatible with e-Connect platform
• Outputs connector for ETRREL
• Generic expansion connector (to connect a RS232 midin interface)
• USB connector
• 2.4 A power supply unit
• Compliance with EN50131 grade 2

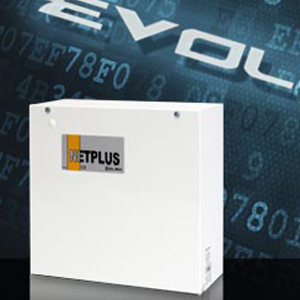

EL.MO. NETPLUS intrusion detection control systems
