Editor’s Choice: a&s’ Top 10 industrial PoE switches

Editor’s Choice: a&s’ Top 10 industrial PoE switches
a&s editor’s choice of Top 10 industrial PoE switches based on the popularity of web search and mentions by buyers. They are listed in alphabetical order.

Industrial PoE switches are hardened, ruggedized and operable in a broad temperature range. For this reason, they are suitable for use cases in certain verticals, for example manufacturing, oil and gas and transportation, where end user entities operate in harsh environments. Below please find a&s editor’s choice of Top 10 industrial PoE switches based on the popularity of web search and mentions by buyers. They are listed in alphabetical order.

Advantech EKI-7712G-4FMPI 8GE PoE and 4G SFP Managed Ethernet Switch

The EKI-7712G-4FMPI supports IEEE 802.3bt Class 8 90W PoE for high-powered application, providing multiple usage for different scenario. Allowing fast deployment to save engineering time and costs, the switch is equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times.

Key features:

1. Support 2 x IEEE 802.3bt class 8 90W PoE ports, 6 x IEEE 802.3at/af PoE ports and 4 x SFP ports
2. Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
3. Security: 802.1x (port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS

Altronix NetWay4ELWPX

Altronix NetWay4ELWPX outdoor PoE+ hardened switch provides a 1Gb SFP port and four PoE+ (30W) ports or up to two Hi-PoE (60W) ports. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ technology allows you to monitor, control and report power and diagnostics from anywhere.

Key features:

1. Speed: 10/100/1000Mbps, half/full duplex, auto negotiation
2. One (1) Gigabit SFP port
3. Heartbeat LED indicates proper operation of the unit

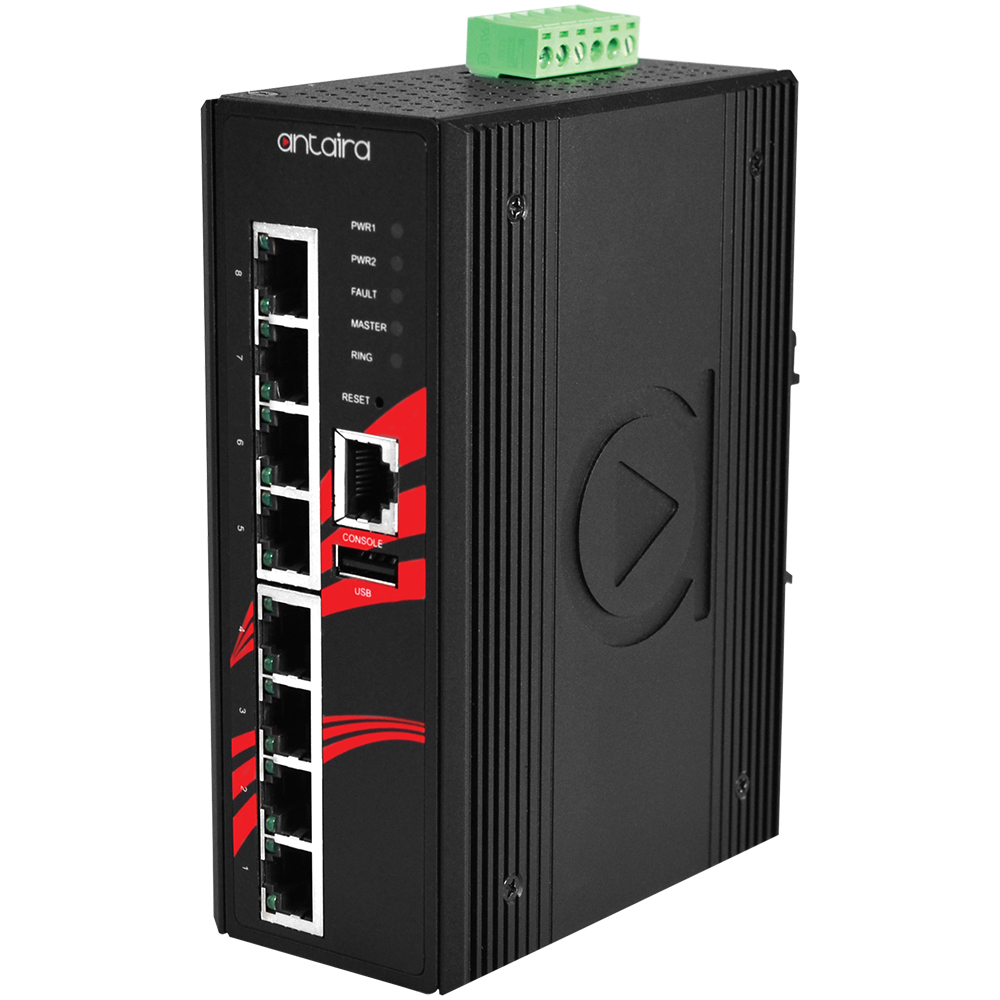

Antaira LMX-0800G 8-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch w/8*10/100/1000Tx Ports

With a compact form factor design with an IP30 rating, DIN-rail mounting and standard operating temperature support from -10°C to 70°C, Antaira’s LMX-0800G is embedded with eight 10/100/1000Tx Gigabit ports and is suitable for factory automation, ITS, power/utility, water wastewater or any other outdoor or harsh environment.

Key features:

1. Supports 8*10/100/1000Tx Gigabit Ports
2. Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery time <50ms)
3. Redundant Power Input Design 12~48VDC + Built-in Relay Output for Port Break Alarm

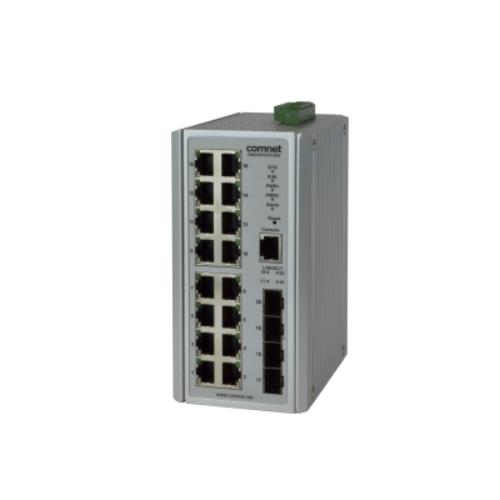

ComNet CNGE20FX4TX16MS Managed Ethernet Switch

The ComNet CNGE20FX4TX16MS managed Ethernet switch is designed for direct deployment in difficult out-of-plant or roadside operating environments, features a plug-and-play design for ease of installation and requires no electrical or optical adjustments.

Key features:

1. Uses interchangeable SFP for fiber type, distance and connector
2. Security: 802.1x (port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
3. Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms)

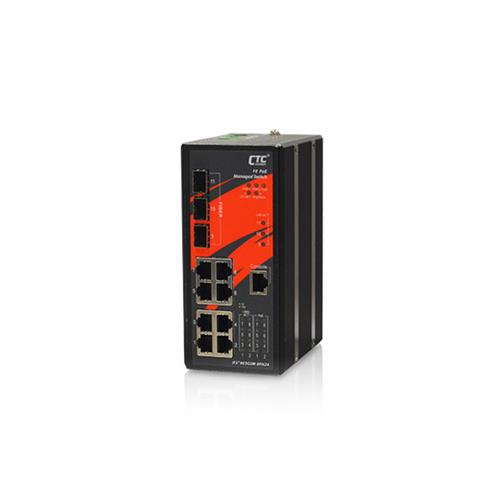

CTC Union Technologies Industrial Managed PoE Switch IFS⁺803GSM-8PH24

IFS⁺803GSM-8PH24 is a managed, industrial grade, L2 PoE switch that provide 8x 10/100Base-TX ports plus 3x 100/1000Base-X SFP ports with 8x PoE Ports. Housed in rugged DIN rail or wall mountable IP-30 enclosures, the switch has wide operating temperature range (-40 to 75°C) to fulfill the special needs of industrial automation applications.

Key features:

1. 24/48VDC (20~57VDC) redundant dual input power with built-in very high efficiency booster
2. Regulated PoE output voltage (52VDC) to stabilize PoE device and guarantee delivery PoE power distance to 100m
3. Provides 8 port IEEE 802.3af/802.3at PoE+ output, 30W per port, total 180W

EtherWAN EG97000 Hardened Managed 8 10/100/1000BASE-T +16 100/1000BASE SFP +4 10G SFP+ Layer3 Ethernet Switch

With forward and filtering rate of up to 14,880,952 pps for 10Gbps, the EG97000 Hardened Managed 8 10/100/1000BASE-T +16 100/1000BASE SFP +4 10G SFP+ Layer3 Ethernet Switch has obtained various certifications for vertical applications. These include EN 55032, EN 50121-4, NEMA TS2 and UL 62368.

Key features:

1. 100-240VAC redundant (AC inlet)
2. Environment operating temperature: -40 to 75°C (-40 to 167°F)
3. Ambient relative humidity: 5% to 95% (non-condensing)

KBC Industrial ESMGS8-P4-B Series

The KBC ESMGS8-P4-B series is a 12-port, industrial, managed gigabit switch with eight 10/100/1000M PoE ports and four gigabit SFP ports. It features typical recovery time of less than 30ms with 250 connected units; STP/RSTP and MSTP redundancy protocols; and a unique DIN mount design making mount and removal easy.

Key features:

1. SNMPv1/v2c/v3 & RMON & Port base/802.1Q VLAN network management
2. IGMP Snooping multicast function
3. Overload current protection and reverse polarity protection

Konten MT-0804X 8+4 Port Industrial Managed PoE+ Booster Ethernet Switch with 10G Uplink

The switch comes with four 1/10 Gigabit Ethernet SFP+ Slot and eight Gigabit Ethernet ports with IEEE 802.3at PoE+ to support a range of devices including passenger information systems, high-resolution dome cameras and IR cameras, making it especially suitable for wayside control and rail platform applications.

Key features:

1. RSTP, MSTP, ERPS, LACP, MRP for network redundancy
2. Supports IGMP Snooping v1/v2/v3, up to 512 groups
3. Supports PoE PD Alive Check Function for PoE Device Power Recycle

Korenix JetNet 5310G Industrial 8 + 2G Combo Managed High Power IEEE802.3at Switch

With IEC 61000-6-2/61000-6-4 certified design, JetNet 5310G ensures high performance of the surveillance network under vibrating and shock environments in rolling, traffic control systems and other harsh surveillance applications. It allows 15.4W and 30W power per port to enable requiring devices, such as wireless Aps and PTZ cameras.

Key features:

1. 8 10/100 Base TX ports and 2 Gigabit RJ/SFP combo ports
2. SFP ports support 100/1000 Mbps with Digital Diagnostic Monitoring (DDM) to monitor long distance fiber quality
3. All ports support Korenix patented RSR with 5ms recovery time, and MSR for up to 4 x 100M rings and 2 Gigabit uplink rings

Lantech IPGS-6488XSFP 10GbE Industrial Managed PoE Ethernet Switch

The Lantech IPGS-6488XSFP 10GbE Industrial Managed PoE Ethernet Switch includes various security features including SSH v2/SSL, HTTPS, INGRESS ACL L2/L3 and TACACS+. , With a user-friendly UI, the switch supports enhanced G.8032 ring to cover multicast packets.

Key features:

1. Auto-sensing SFP/ SFP+ Uplink Cage
2. Support IEEE802.3at/af up to 30W per port
3. USB port to backup, restore the configuration file and upgrade
