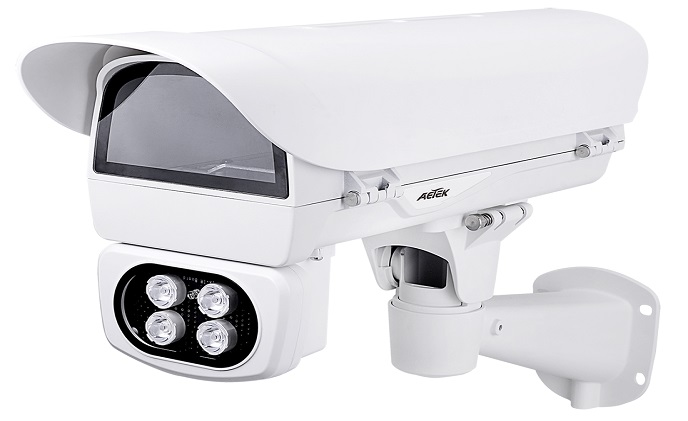

A5020-E EPOC Camera Housing

A5020-E is a long range EPoC (Ethernet & Power over Coax) Camera Housing with IR illuminator specially designed to accommodate for today’s indoor PoE IP box/brick style camera reaching 500m & keeping 25W PoE budget remotely. This unparalleled solution allows IR illuminator, heater, blower, and multi-brands of PoE IP box/brick camera to be powered over single RG6/RG59/RG11 coaxial cable. The camera housing is constructed from cast aluminum to meet IP66 and IK10 standards. Moreover, even a camera equipped with wide-angle or long-distance remote focus lens fitsinA5020-E.
  • Aluminum die casting body
  • Powered by EPoC
  • Spacious dimensions for camera equipped with long varifocal lens
  • Window heater for demisting & deicing
  • Adjustable sunshield

A5020-T EPOT Camera Housing

A5020-T is a long range EPoC (Ethernet & Power over UTP/STP cable) Camera Housing with IR illuminator specially designed to accommodate for today’s indoor PoE IP box/brick style camera reaching 500m & keeping 25W PoE budget remotely. This unparalleled solution allows IR illuminator, heater, blower, and multi-brands of PoE IP box/brick camera to be powered over single RJ45 cable. The camera housing is constructed from cast aluminum to meet IP66 and IK10 standards. Moreover, even a camera equipped with wide-angle or long-distance remote focus lens fits in A5020-T.
  • Aluminum die casting body
  • Powered by EPoT
  • Spacious dimensions for camera equipped with long varifocal lens
  • Window heater for demisting & deicing
  • Adjustable sunshield

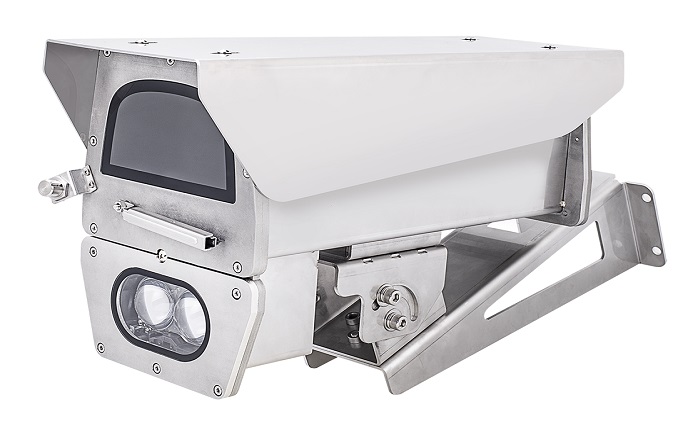

S6000-IW Stainless Camera Housing

AETEK’s S6000-IW camera housing constructed by AISI 316L stainless steel is designed to protect IP box/brick camera in highly corrosive & severe environments such as offshore, chemical, petrochemical, and tunnel areas. Besides built-in heater & blower to prevent from ice & mist on window, S6000-IW has built-in wiper and is compliant to IP66, and IK10 standards. An UPoE (60W) power input is obligatory for this robust housing providing PoE & 24VDC output inside housing. S6000-IW is a new generation of camera housing equipped with built-in 12W VAIR illuminator that is adjustable on beam angle by remote control thru RS485 Pelco-D command or manual dip switch to suit camera’s FOV. Furthermore, the inner capacious spaces suits camera equipped with wide angle & long distance lens.
  • IP68/IK10, IP66/IK10 for wiper model & VAIR LED model
  • Powered by 60W/95W UPoE (S6000-I, S6000-IW)
  • AISI 316L stainless steel construction
  • Fits corrosive & severe environments
  • I: VARI ; - W: Wiper
