Key Specifications
The miniature miConverter 10/100 PoE/D is a rate-switching 10/100 RJ-45 copper to 100BASE-X fiber media converter that can be powered with Power over Ethernet (PoE) when connected to PoE switches and midspans. It can also be powered with DC power or AC power with an external power adapter. The miConverter 10/100 PoE/D provides reliable and cost-effective fiber extension in a variety of FTTx applications, including fiber to the desktop and Fiber to the Premises.

Features

  • Supports 10BASE-T, 100BASE-TX, 100BASE-X and IEEE 802.3 specifications
  • Compact and light weight
  • Fixed fiber port supports multimode and single-mode dual fiber with ST, SC and LC connectors; and single-mode single-fiber with SC connectors
  • SFP transceivers for standard or CWDM wavelengths
  • RJ-45/PoE port supports Full/Half-Duplex auto-negotiation and MDI/MDIX auto-crossover
  • LED indicators for RJ-45 and fiber port status
  • User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting
  • Power-over-Ethernet (IEEE 802.3af PoE/PD) with redundant power options:

    • DC Power 7-60VDC (2-Pin Terminal) or
    • US, Universal and Country/Region specific AC power adapter (Barrel Connector)

  • Available with or without integrated mounting brackets
  • Models without integrated mounting brackets can be installed in an 18-Module Powered Chassis
  • Commercial (0 to 50ºC), wide (-40º to 60ºC),  extended (-40º to 75ºC) and industrial* (-40º to 85ºC) temperature ranges
  • Lifetime Warranty and free 24/7 Technical Support

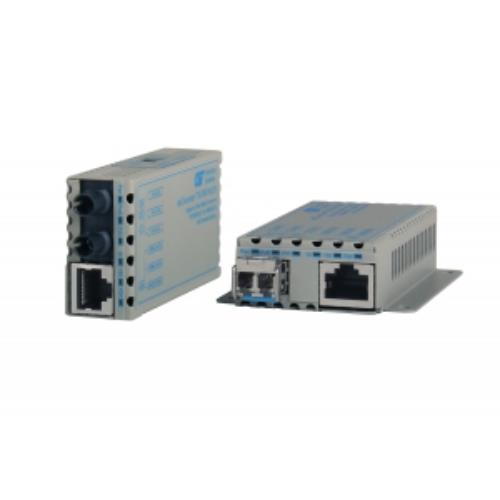

Omnitron miConverter 10/100 PoE/D
