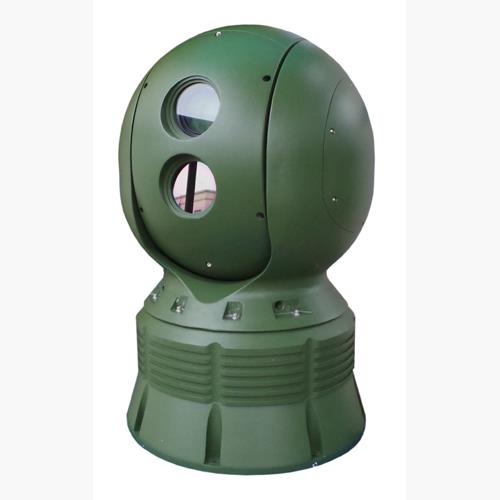

Multi-spectrum ultra long range PTZ infrared laser& thermal imaging camera
Key Specifications
Model ZTRC
Shape U shape & Dome Shape housing,
Multi-dimensional free-form surface shape resisting 33m/s wind.
Load duty 50 kg
Rotation speed Pan: 0.01°～45°/S; Tilt: 0.01°～45°/S；(optional 200°/S )
PT Pan: 0～360° ; Tilt: -45°～+45°(optional +90 )
Preset 200
PT position back sending 0.01°accuracy , real-time back up
Smart features 1. Automatic Patrol : 8 path, 10 patrol positions/path
2. Automatic homing can be set from 1 to 60 minutes
3. Auto Scan: 1
Interface 1.1 channel 10M / 100M adaptive Ethernet port (containing visible thermal image + HD + RS485 control), 1 AC24V / DC24V,
2. (Optional) Reserved RS422 / 485 and analog video, azimuth return for radar, GIS linkage position, or third-party intelligent analysis
3. Military-grade waterproof aviation plug
Protocol 1.TCP / IP, HTTP, DHCP, DNS, DDNS, RTP and other network protocols
2. Support ONVIF2.0
3. Pelco-P, Pelco-D and other industry-standard protocol, baud rate 2400,4800,9600,19200 alternative, proprietary protocols can be customized
Enhancements Lens defrost, air-cooled shields, heating function to achieve automatic control and heated open at -35 degrees
Power supply AC220V±20%
Turntable rotation power can be controlled in 120W,
maximum power consumption 150W,
stationary machine power 45W, heating 150W
Environmental indicators 1. Working temperature: -40 ℃ ~ + 55 ℃
2. Storage temperature: -40 ℃ ~ + 65 ℃
3. Humidity: <90%
4. Protection: IP66
