The whole system runs smoothly, long-life performance, high operation dependability and fast response.
Alarm function, in case of illegal intrusion and reverse intrusion.
Infrared sensor to prevent pinch pedestrians.
Anti-breakthrough function. The gate is locked automatically until opening signal received.
Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.
Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
When power off, optical turnstile will open automatically, which is complying with fire safety requirements.

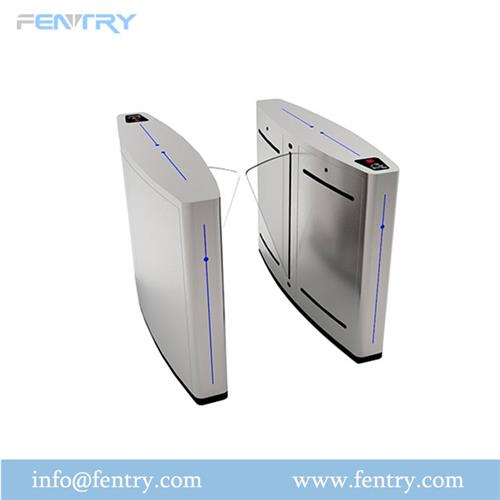

Model No. FY311
Framework Material 304 Stainless Steel
Dimension 1400 * 300 * 990mm
Net Weight 85kg
Passage Width 600mm (One passage)
Passing Direction Single directional / Bi-directional
Power Supply AC220V/110V, 50/60Hz
Operation Voltage 24V DC
Power Consumption 40W
Operation Temperature -15 °C – 60 °C
Operation Humidity 0 ~ 95% (No freeze)
Working Environment Indoor / Outdoor (Shelter)
Flow Rate 40-45 people per minute
LED Indicator Yes
Input Dry contact
Emergency Automatic arm open when power off
Communication RS485, TCP/IP
