Key Specifications
KEY FEATURES:
* 1/1.8" Progressive Scan CMOS
* 52x optical zoom,16x digital zoom.
* Up to 1920×1080 resolution.
* 265+/H.264 video compression.
* ONVIF compatible
* Die-Casting housing, IP66 (NEMA 4)
* Optional IR LED/ IR LASER
* Optional Lighting direction remote adjustment structure (Patent pending).
* Optional wiper
* Optional water tank

Application
Oilfield monitoring, navigation, fishery, aquaculture, railway&freeway security, seaport&airport security, mariculture security, city security and forest fire prevention.


PTZ521
PTZ522
PTZ523
comments
1000 IR lighting
2000 IR lighting
3000 IR lighting
Camera & Lens
Sensor
1/1.8" Progressive Scan CMOS
Low light
Color:0.0005Lux @ (F1.4,AGC ON) B/W:0.0001Lux @ (F1.4,AGC ON)
S/N Ratio
> 50dB
Focal Length
6.1 – 317 mm
Iris
F1.4-F4.7
Horizontal View Angle
61.8° ~ 1.6°
Day and Night
Mechanical ICR: Auto, Color, Black and White
Shutter speed
1/25s ~ 1/100,000s;Digital Slow shutter;
Exposure mode
Auto, Manual, Iris Prior, Shutter Prior
Privacy Mask
8 zones, could be set to different color
On Screen Overlay
128 x 128 24 bits BMP files, at any location
Digital De-fog
Support
Digital Image stabilize
Support
3DNR
Support
WDR
support, up to 120dB
Multiple Video Stream
Up to 3 video streaming for different resolutions
Max Main streaming
50Hz: 1920 × 1080 @ 50fps
60Hz: 1920 × 1080 @ 60fps
ROI streaming
Up to 3 video streaming for different ROIs
Storage
Micro SD up to 128GB
Smart Analysis
Face detection, Over boundary detection, Intrusion detection, Fast movement detection, Parking detection etc.
IP protocol
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP
ONVIF
Support
Audio & Video compression
Video compression
H.265 / H.264 / MJPEG
Video Format
50Hz:25fps (1920×1080,1280×960,1280×720);
60Hz:30fps (1920×1080,1280×960,1280×720);
H.265
Main Profile
H.264
Base Line Profile / Main Profile / High Profile
Video bitrate
32 Kbps~16Mbps
Audio compression
G.711a/G.711u/G.722.1/G.726/MP2L2/AAC
Audio bitrate
64Kbps (G.711)/16Kbps (G.722.1)/16Kbps (G.726)/32-192Kbps (MP2L2)/16-64Kbps (AAC)
PTZ
Movement Range (Pan)
360° endless
Pan Speed
Configurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s
Movement Range (Tilt)
From -90° to 45°
Tilt Speed
Configurable, from 0.1°/s to 50°/s, Preset Speed: 50°/s
Presets
up to 255 presets
Patrols
8 patrols, up to 32 presets for each patrol
Patterns
8 patterns, over 10 minutes for each pattern
Auto Scans
4 records
General
Ethernet
10/100Base-T, RJ45 Connector
RS-485
Support, PELCO-P / D Self-Adaption
CVBS
BNC connector, NTSC/PAL composite, 1.0V[p-p] @75Ω
audio
3.5mm connector, Line In/out
Alarm
1 alarm in / 1 alarm out
Power Supply
AC24V +/- 10%
Temperature
-40°C to 60°C (-40°F to 140°F)
Humidity
≤ 90%
Waterproof
IP66, NEMA 4;
Lightening Protection
Up to 6KV
Dimensions
L355mm × W204mm × H443mm
Weight
12 kg
long range infrared camera Power supply:
Power supply
100-240Vdc
Pumper Control
Contact Close
Water low alarming
Contact Close
Maximum water flow
14L/min
Capacity
5L/10L
Water lift
5M
Pipe length
5M / On demand
Lifetime
2000 Hours Continuously running
Power consumption
≤15w
Size
L285 * W193 * H246mm
Weight
2kg(5L) / 4kg(10L)
Rating
IP66

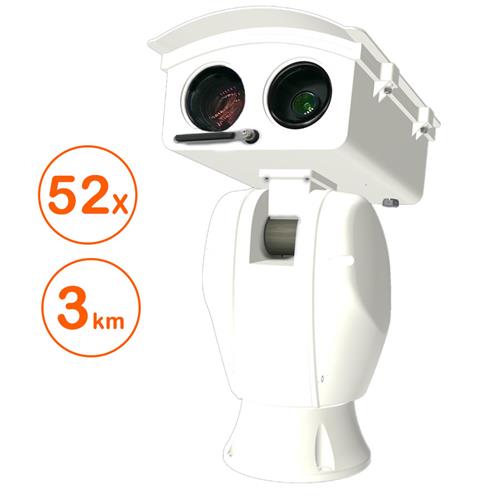

OEM&ODM 52x HD 3km IR Long range night vision IR PTZ camera
