BEAR COMMS, INC.

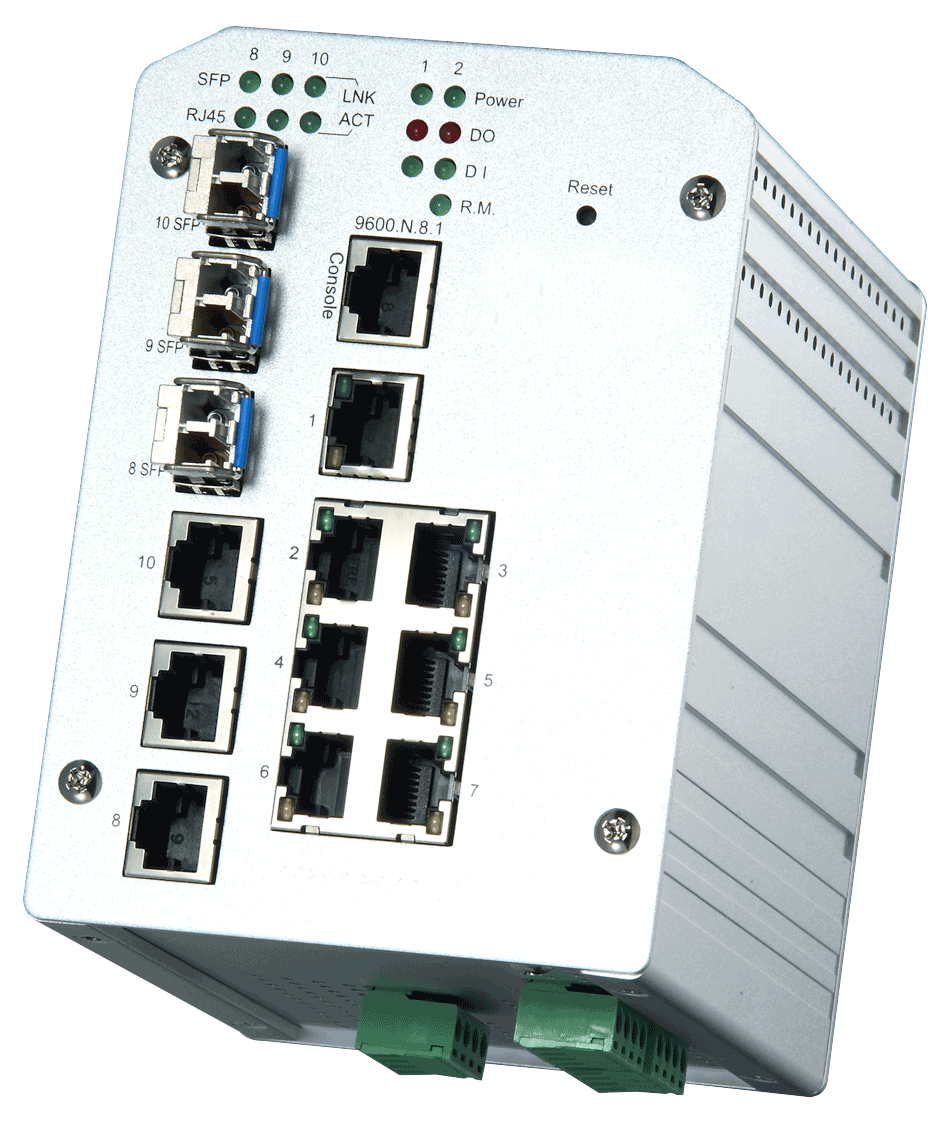

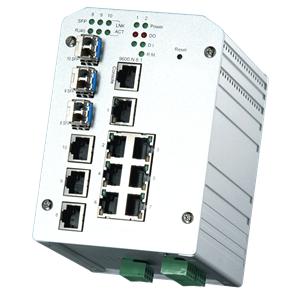

DFB-6110 Industrial Switch
The DFB-6110 is a Managed Industrial Ethernet Switch, equipped with 7 ports 10/100TX and 3 ports 10/100/1000 RJ-45/100-FX/Gigabit SX/LX combo ports. The 2 gigabit ports are used to form the nonstop Rapid Super Ring. The 3rd gigabit port is used to connect to upper switch, to couple ring or public server. The gigabit combo port design gives the flexibility to choose copper or fiber media, 100Base-FX or 1000Base-X, multi-mode or Single-Mode for different distance application, need of without stocking different switch models. The DFB-6110 is designed as rugged surface in aluminum material with curvilineal heating dispersing mechanical design and wide operating temperature. The embedded software supports full Layer 2 management features, MSTP, RSTP, multiform ring redundancy, network control, monitor, security and notification. The DFB-6110 also provides builtin watchdog timer, digital input and relay output to avoid undetected damage. With DFB-6110 you can fulfill the dream of having the perfect solution to construct your industrial Ethernet infrastructure.
● 7 10/100Base-TX and 3 Gigabit RJ-45/SFP combo ports (10 / 100 / 1000 Base-T, 100 Base-FX, 1000 Base-X)
● SFP ports support 100/1000 Fiber with Digital Diagnostic Monitoring (DDM) to monitor long distance fiber quality
● 32Gbps Non-Blocking, switch backplane 8K MAC address table
● IEEE 802.1s MSTP, RSTP and HoneyRing (Rapid Super Ring, Dual Homing, MultiRing, TrunkRing) for network redundancy
● Advanced management by 256 VLAN, Private VLAN, QinQ, GVRP, QoS, IGMP Snooping V1/V2/V3, Rate Control, Port Trunking, LACP, Online Multi-Port Mirroring VLAN, Private VLAN, QinQ, GVRP, QoS, IGMP Snooping V1/V2/V3, Rate Control, Port Trunking, LACP, Online Multi-Port Mirroring
● Supports LLDP and bearcomms software for auto-topology visualization and efficient group management
● Supports Modbus TCP/IP for Factory Automation
● Supports console CLI , Web, SNMP V1/V2c/V3, RMON, HTTPS, SSH for remote management
● Advanced security feature supports IP Security, Port Security, DHCP Server, IP and MAC Binding, 802.1x network access control
● Event Notification by E-mail, SNMP trap, Syslog, Digital Input and Relay Output
● Dual 10.5-60VDC power inputs
● IP31 rugged aluminum case
● -25~70°C (DFB-6110), -40~75°C (DFB-6110w) operating temperature
