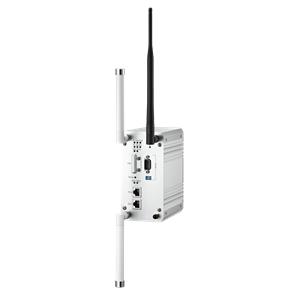

IWGP-3N21 Industrial Device
The IWGP-3N21 is an industrial-grade Cellular IP gateway which enables access to the Ethernet, WIFI and Serial port communication over the 3G Cellular network. The IMGP-3N21 is equipped with one embedded 3G module, 2 Gigabit Ethernet ports, 802.11n 2.4G/5G selectable WIFI radio and 1x RS232/422/485 Serial Port.
● Connect Ethernet, WLAN & Serial device over 3G network
● UMTS/HSPA+ bands, GSM/GPRS/EDGE quad-band support
● 802.11n 2x2 MIMO doubles data rate, 300Mbps
● Dual Gigabit Ethernet Ports
● LAN to 3G Routing, WIFI to 3G Routing
● 3G/WAN Redundant
● HoneyMaster for Wire & Wireless Management
● RS-232/422/485 Serial port supports Serial mode includes TCP Server/Client and UDP
● Gigabit PoE+ power input
● Industrial IP31 Aluminum Housing
● Redundant DC24V(12~48V) power input, DI + DO Alarm
● EN50121-4 Railway EMC, -40~70oC Operating temp
