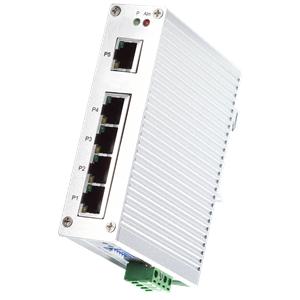

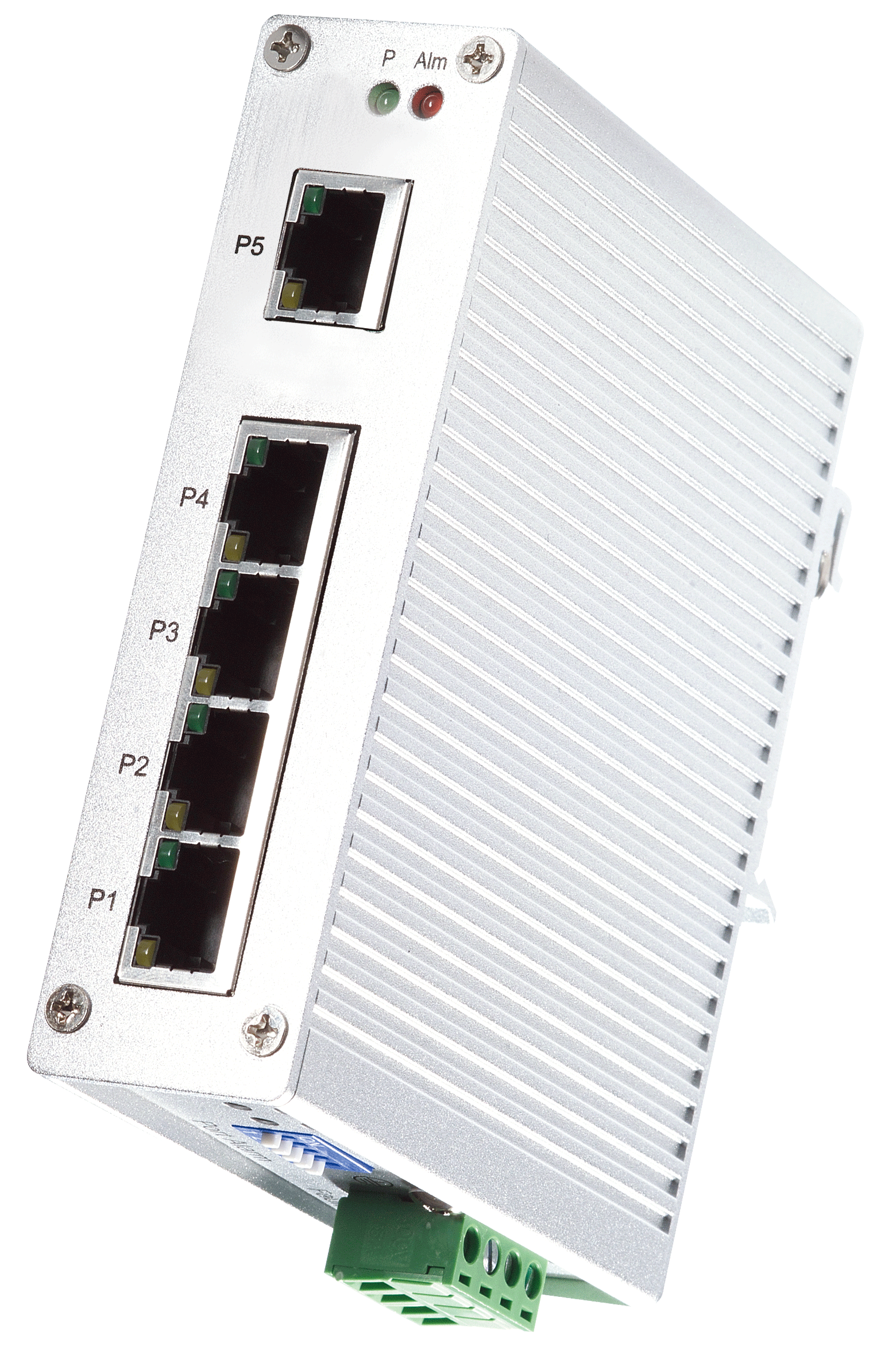

DEB-3105 Industrial Switch
DEB-3105 is an Industrial 5-port 10/100Base-TX Ethernet switch. DEB-3105 adopts slim industrial design to save rail space for compact systems. In order to survive under harsh environment, DEB-3105 features an industrial-grade aluminum case with IP31 grade protection ability against dust and water. DEB-3105 provides one relay output for port link down events, which is enabled/ disabled by the DIP switch. Moreover, DEB-3105 has good immunity against unstable power source and can accept DC 18~32V power input by terminal block.
● 5 10/100TX Ports with Auto MDI/MDI-X
● Slim-sized for Industrial Din-rail Application
● 18~32VDC Power Input
● Relay Output for Port Alarm
● Supports AC 1.5KV Hi-pot isolation protection
● IP31 rugged aluminum case
● Operating temperature -25~70oC (-40~75oC wide temperature model available by request)
