Key Specifications

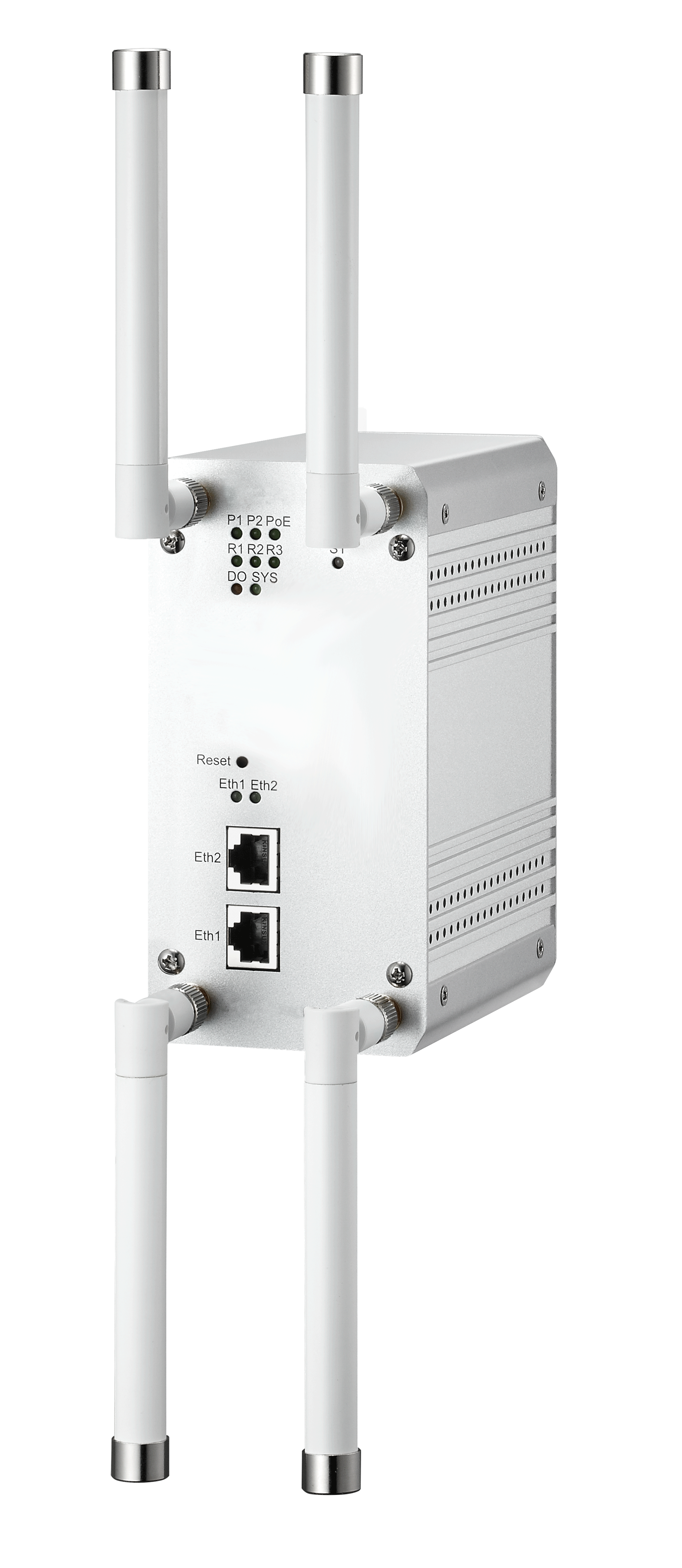

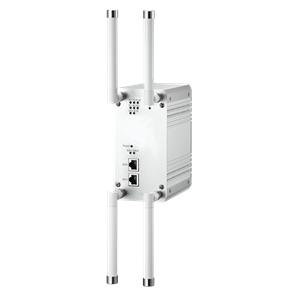

IWGP-2N20 Industrial Device

The IWGP-2N20 series is an industrial 802.11n/ a/b/g Wireless AP which offers a high performance and reliability wireless solution for both 2.4G and 5G radio band. With the IWGP-2N20 series wireless access point, a network designer will easily achieve the integration of wired and wireless networks.

● Dual Radio Configurable: 802.11 a/b/g/n and 2.4G/5G Band

● 802.11n 2T2R MIMO doubles data rate up to 300Mbps per radio

● Rugged M12 anti-vibration connector for vehicle installation(IWGP-2N20m)

● LAN/Wireless Link Fault Pass-Through

● Dual Radio Bridge and Redundancy

● LAN/WAN/WIFI Bridging and Routing

● SNMP, Function-based MIB, Korenix View Utility, Korenix NMS for remote Management

● Industrial IP31 Aluminum Housing

● Gigabit PoE+ power input

● DC24V(12~48V) Redundant DC Power Input, DI + DO

● EN50121-4, -40~70°C operating temp.

● IWGP-2N20: Dual 802.11n 2.4G/5G 2T2R MIMO Radio with Dual Gigabit Ethernet

● IWGP-2N20m: Dual 802.11n 2.4G/5G 2T2R MIMO Radio with Dual Gigabit Ethernet  M12 Connector

IWGP-2N20 Industrial Device

IWGP-2N20 Industrial Device
