Key Specifications

  • Support GenICam ™ and GigE Vision® Standard

  • Compact design, to save installation space

  • Rugged industrial housing design

  • Built-in temperature, power supply real-time monitoring sensor

  • Provide professional SDK for GigE machine vision camera



Specification








































































































Model 1300-75gm 1300-75gc
Resolution 1280x1024 (1.3 Mega Pixel)
Sensor Type CMOS
Sensor Model PYTHON 1300
Format 1/2"
Pixel Size 4.8μm x 4.8μm
Maximum Frame Rate 75fps
Bit Depth 8-bit or 10-bit
Mono/Color Monochrome Color
Exposure Time 16μs~1s
SNR >38dB
Dynamic Range 60dB
Shutter Type Global Shutter
Interface Gigabit Ethernet (100m Transmission Distance)
Lens Mout Standard C-Mout
Power Supply DC 6-24V, PoE
Power Comsumption Approx. 3.1W@12V DC, Approx. 3.4W@PoE
Hardware Control I/O input (external trigger), I/O output, Opto-couplers Isolation
Programmable Control Image Resolution, RGB gain, Exposure Time, Contrast, Gamma Chart, Image Rollover, Raw, LUT, Black Level Correction
Opearting System Support Windows XP/7/8/10

Support 32-bit and 64-bit operating system/Arm/Linux
Operating Tempearture -30~+60℃
Storage Temperature -30℃~+80℃
Mass 88g

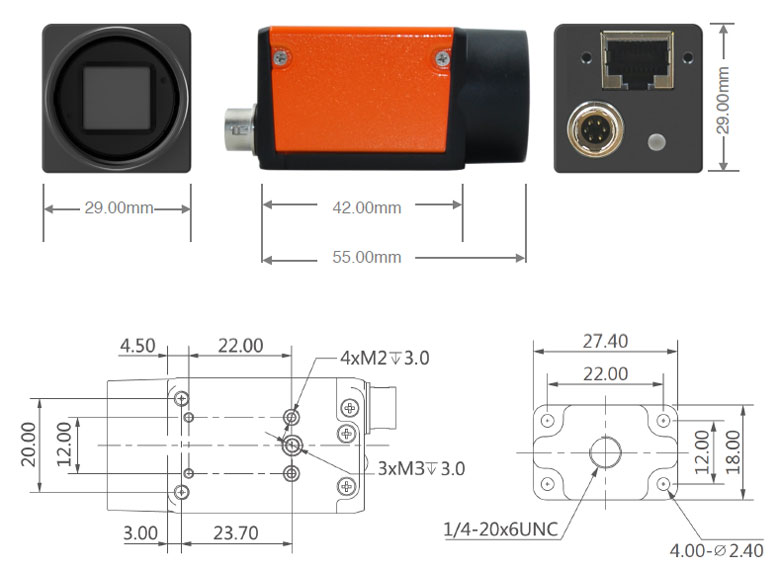

Dimension 42x29x29mm



GigE Vision Industrial Camera, 1.3MP, 12 CMOS, MonoColor
