With a long-standing history in the industrial Ethernet switch market, ORing has accomplished numerous global railway projects in recent years. In line with clients' needs, ORing launches the full-Gigabit TGS-1080-M12 series industrial Ethernet switch, high cost efficiency Ethernet Switch featuring 8 ports for rolling stock applications.
To cope with the harsh environments of in-vehicle and railway applications, the TGS-1080-M12 is furnished with M12 connectors and a wide temperature range from -40 to 70°C, along with an IP-40 casing. Therefore, the device is able to provide stable data communications for moving vehicles. Capable of delivering HD data to high bandwidth equipment, the TGS-1080-M12 series consists of eight 10/100/1000Base-T(X) ports, and two of which are bypass enabled. Acting as standard Ethernet ports in normal conditions, these two bypass ports will create an in-line connection when a power outage occurs. As a result, network traffic in the failed switch will continue to transmit to other active switches, significantly enhancing network reliability.

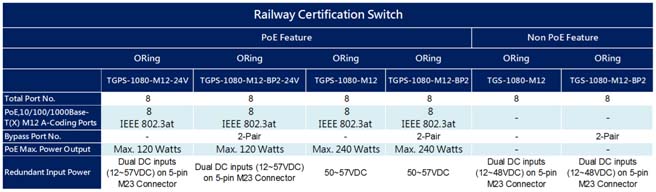

Another alternative to the TGS-1080-M12 series, ORing also provides the TGPS-1080-M12-BP2-24V industrial Ethernet switch which provides POE function conforming to IEEE 802.3af/at standard, it is an ideal solution for outdoors, remote areas, or environments where power outlets are difficult to access. By powering railway surveillance systems over the Ethernet cables, vendors do not need to install additional power supplies, thereby cutting down power supply costs. The solution is perfect for complex and distributed railway applications.
