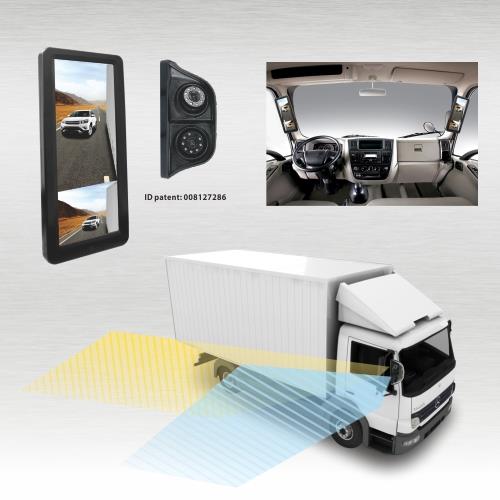

12.3” CMS Mirrorless System
Key Specifications
Features:
- increases safety by covering a greater field of vision than mirror classes II, IV(R46 compliance)
- includes 2 AHD 720P IP 69K cameras mounted on the side of a vehicle
- 12.3” split-screen AHD monitor to display the camera images in real time
- PAL/NTSC mixed input of different formats supporting AHD/ CVBS video signals (adaptive)
- Brightness, contrast, saturation, chroma and sharpness can be independently set for each input video signal
- Support parking stall delay video recording (24-hour parking monitoring function);
- Max. support 512GB memory card
- Easy to upgrade system to the latest programs through video cards
Monitor Spec:
- Screen size: 12.3” IPS panel
- Scree ratio: 8 : 3
- Resolution: 1920(H) x RGB x 720(H) Pixel
- Brightness: 750cd/m2
- Video input: 2 video inputs
- Power supply: DC 12V-36V
- Power output to the cameras: DC 12V
- automatic backlighting for screen, automatically adjust to the brightness of environment
DVR function(optional):
- Chipset: HI 3520(V300)
- Compression format: H.264
- Video inputs: 2CH supported
- Video format: AHD 1080P / AHD 720P / 960H / D1-720x480(CVBS)
- Video resolution: 1920x1080 / 1280x720 / 1024x768 / 800x600
- Storage capacity: external TF card up to 512 GB (circular overlay)
- 2CH video recording and playback simultaneously
Camera spec:
- Image sensor: 1/3” SONY IMX225
- USEFUL PIXELS: 1280(H)x720(V)
- Definition: AHD 720P
- Min illumination: 0.1Lux
- Wide Dynamic: 91dB
- Lens Angle: top cam: 74°(H)/42°(V) ; bottom cam: 56°(H)/33°(V)
- Waterproof IP rating: IP 69K
- Operation voltage range: DC12V
