Key Specifications
[Please send inquiry to : overseas@sscctv.com]

* Overview

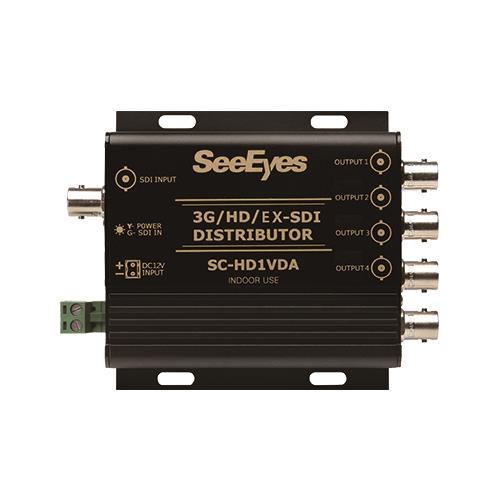

SC-HD1VDA is a 1 in 4 out HD/EX-SDI distribution amplifier to distribute 1 input signal to 4 output. This product is compliant with SMPTE-292M and SMPTE-424M standards and features re-clocking and equalization function thus enabling stable long-distance transmission.

* Features
• 1 In 4 Out distribution
• SMPTE 292M/424M compliant
• Various input (Full HD: 1.5G, Full HD: 3G, EX-SDI 1.0/2.0)
• High-quality HD-SDI signal transmission with built-in re-clocking and equalization features
• Max. 200m (Full HD: 1.5G), Max. 100m (Full HD: 3G) transmission over RG-6
• Surge protection
[SC-HD1VDA] 1 In 4 Out HD/EX-SDI Distribution Amplifier(200m)
