Key Specifications
1-Operation System: Embedded Linux

2-Operation interface: Graphical user interface (GUI), mouse, panel, remote control operation

3-Video standard: PAL\NTSC

4-Image compression: H. 264

5-Audio compression: ADPCM

6-Recoding mode: Manual, timing, alarm, motion detection

7-Video Search: Time search, event search, channel search, the log search

8-Backup: Network backup, USB backup, SATA backup

9-Video input: 8 BNC

10-Video output: 1BNC, 1VGA out

11-Audio input/output: 8 CH input/1CH output

12-Monitoring quality: PAL: 704x576(D1); NTSC: 704x480(D1)

13-Voice Intercom: Support

14-Mobile surveillance: Support

15-Playback quality: PAL: 704x576(D1/CIF); NTSC: 704x480(D1 /CIF)

16-Image Control: 6 level to be selected

17-Motion Detection: For each channel of the detection area (16*16), multi-level sensitivity can be set

18-Live display: 1CH\4CH\8CH\9CH Display

19-Picture in Picture: Support

20-Video Speed: PAL: 25 frames / sec (adjustable) NTSC: 30 frames / sec (adjustable)

21-Video Save: The hard drive, network

22-Alarm Input: 8CH

23-Alarm Output: 1CH

24-Remote control: Support IE/Client

25-PTZ control: RS485

26-Power supply: NO

27-Mouse control: Support

28-Multi-Language: Chinese, English, German, French, Spanish, Italian, Portuguese, Russian, Turkish, Japanese, Korean, Thai and Hebrew Language Firmware

29-Hard Disk Interface: 1 SATA interfaces

30-Network interface: Self-adaptive Ethernet interface. NET 10M/100M

31-USB interface: 2 PCS USB

32-Power: 12V /3A.

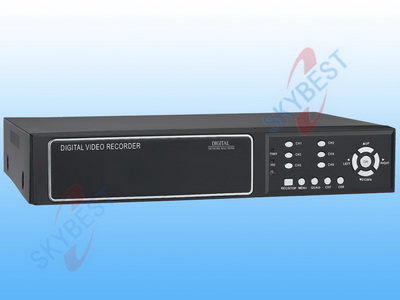

8CH economical DVR (SKY-9508R)
