Key Specifications
Feature

Advanced RTOS; H.264 compression,Support D1;

Software upgrade via USB;

USB mouse control;

PTZ and network function;

Multi-language versions are selectable;

Support mobile remote surveillance;

Support 4 channel Remote Power Supply;

Support network center management system;

Applied in large surveillance area such as bank,supermarket, gas station, factory etc.

Specification

Model NO. 8004 8004V 8004P 8004VP

Operation System Embedded Linux

Compression H.264

Video Input/Output 4 channel BNC input/2 channel BNC output

Audio Input/Output 4 channel BNC input/1 channel BNC output

Display Frame Rate NTSC: 120 fps (4x30 fps)

PAL: 100 fps (4x25 fps)

Record Frame Rate NTSC: 120 fps (4x30 fps) CIF

PAL: 100 fps (4x25 fps) CIF

Record Mode Manual﹑Schedule﹑Motion Detection

Image Quality CIF/HD1/D1 selectable

Record Resolution NTSC:352x240(CIF) 704x240(HD1) 704x480(D1)

PAL:352x288(CIF) 704x288(HD1) 704x576(D1)

Playing Mode 1 channel or 4 channel

Searching Mode By time/By event/By channel

HDD Support 1TB SATA HDD

Alarm Input/Output 4 channel input/1 channel output

Internet IE/PPPoE/DDNS

Remote Control Yes

Mouse Control USB

USB Port USB 2.0

PTZ Control Yes

Language Support Simplified Chinese,English

Software Upgrade USB

VGA Output No Yes No Yes

Mobile Surveillance Support Symbian s60 v3.0 , Mobile Pocket PC operation system

Remote Power Supply No DC 12V remote power supply

Power Supply 19V/2.5A DC 19V/3.42A DC

Working Temperature -10℃ ~ +50℃

Working Humidity 10%~90%

G.W/N.W 3.5KG/2.1KG

Meas(L*W*H) 330x230x60mm

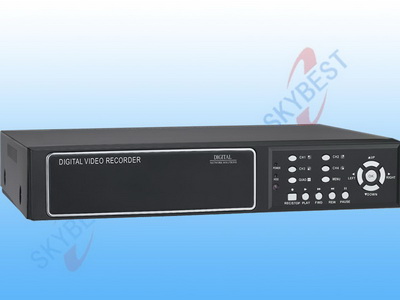

H.264 Stand Alone DVR-8004/8004P/8004V/8004VP (mobilephone surveillance, IPhone)
