Key Specifications

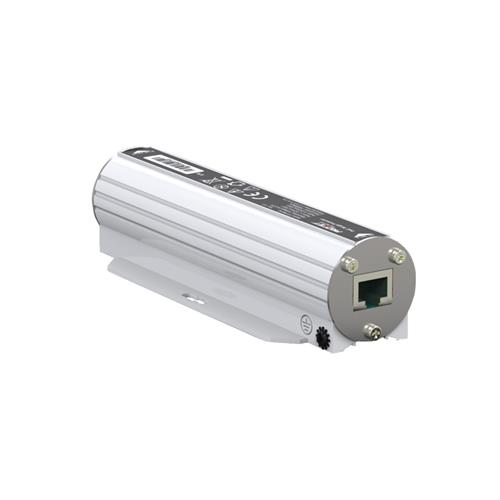

PT-PR01G is a 1 port indoor PoE surge protector with 4 Pair PoE up to 60 watts of power.

Designed for the PoE++ powered 95W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

Enclosed in an IP40 fire retardant Alumininum alloy case, designed for indoor installation with Wall-mounted. It operates with a wide input voltage of 44-57 VDC. The effective distance limitation of 100 meters over Cat5e/Cat6 cables can be extended with the PT-PEX-01G-OT (Outdoor or Indoor PoE Extender).

Key Features: Wall-mounted

Part Number:PT-PR01G

Ports condition PoE Port*2

Regulatory Compliance

IEEE802.3bt

RoHS Compliance

WEEE Compliance

Pass Through Data Rates 10/100/1000 Mbps

Output Pin Assignment and Polarity:

4/5(+), 7/8(-) and 3/6(+),1/2(-)

Maximum Operating DC Current :1A for 2 pairs,

2A for 4 pairs

User Port Power: 60W (Max.)

Input Operating Voltage: 44-57Vdc (Max 60Vdc)

Working Environment Operating Temperature: -40℃ to 65℃

Operating Humidity: 20% to 80%, non-condensation

Storage Temperature: -40℃ to 85℃

Storage Humidity: 10% to 90%, non-condensation

Operating Altitude: up to 5000meters

PoE Surge Protection:Protected line: 1,2,3,4,5,6,7,8

Common mode surge protection(10/700us): 10KV

Differential mode surge protection (10/700us): 6KV

Mechanical Characteristics:

Case: Alumininum alloy

Color: White

Mounting: Wall-mounted

IP Rated: IP67

Connectors: Shielded RJ-45*2

Size: 156mmX 53mmX 38mm

Weight: 240g(8.47oz)

LED Indicator:PoE Load Indicator: Green

Warranty:2 year

Safety Approvals:CE/FCC

Procet Indoor Wall-mounted AF/AT/BT PoE Surge protector Output 60W max PT-PR01G
