Key Specifications

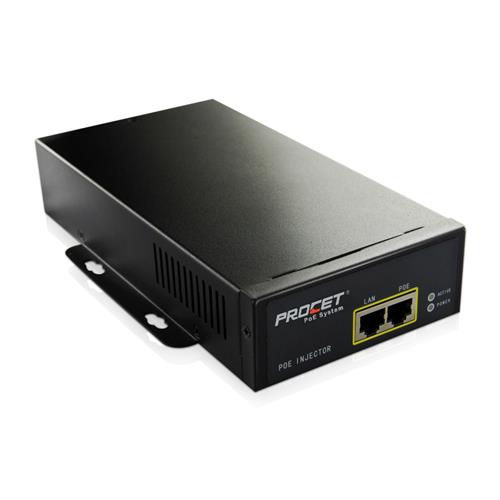

PT-PSE109GBRO is a single port midspan Injector with 4 Pair PoE up to 95 watts of power at 55 Vdc at 1.75 Amp.



Designed for the PoE++ powered 95W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.



Enclosed in an IP20 high-impact metal case, designed for indoor use but can work outdoor by covered with waterproof case. It works with a wide input voltage of 100-240VAC with 6KV surge protection, 50 or 60 Hz and operates under -40℃ to +65℃. The effective distance limitation is 100 meters over Cat5e/Cat6 cables.

Key Features:
*Industrial PoE can be outdoor use by covered with waterproof case
*Extend temperature from -40℃ to 65℃
*Lighting Protection at PoE port
*Gigabit data rates
*IP20 high-impact metal enclosure
*AC power cord with optional US or EU plug or other standard plug

Diagnostic LEDs
Part Number:PT-PSE109GBRO
Ports condition LAN Port*1, AC Input Port*1, PoE Output Port*1
Regulatory Compliance:
IEEE802.3bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates 10/100/1000 Mbps
Output Pin Assignment and Polarity:
4/5(+), 7/8(-) and 3/6(+),1/2(-)
Output Power Voltage: 55Vdc
User Port Power: 95W Guaranteen
Input AC Input Voltage:90 to 264Vac(100 to 240Vac Rated)
AC Input Current: 2.0A
Frequency: 47 to 63Hz (50/60Hz Typ.)
Working Environment:Operating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge Protection:Protected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
AC Surge Protection:Line-Earth 1.2/50us (8/20us): 2KV
Line-Line 1.2/50us (8/20us): 1KV
Mechanical Characteristics:Case: Metal
Color: Black
Mounting:Wall-mounted
IP Rated: IP20
Connectors: Shielded RJ-45*2
Size: 214 X 134 X 41mm
Weight: 1070g(2.36lb)
LED Indicator:Power Indicator: Green
PoE Load Indicator: Green
Warranty:2 year
Safety Approvals:cUL/UL, CE, CB, FCC, RCM, NOM
Procet Industrial IEEE802.3 bt 95W PoE Injector PT-PSE109GBRO
