Key Specifications
PT-PSE108GR-OT is a single port midspan Injector with 2 Pair PoE up to 30 watts of power at 55 VDC at 0.55 amp.Designed for the PoE+ powered 30W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates.

Fully comply with IEEE802.3at and remains compatible with any IEEE802.3af compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.Enclosed in an IP66, IEC60529, NEMA 250 fire retardant metal case, designed for outdoor installation with Pole-mounted.

It operates with a wide input voltage of 100-240Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables , It is easy to install with installation kit PT-POT-MBK, no need to open equipment.can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender)

*Data speed: 10/100/1000Mbps(Gigabit)

*Input: 100-240VAC 1.5A

*Output: 24Vdc 1.0A , 24W

*PoE&AC port surge protection: 6kv

*Wide Temperature: -40℃ to 65℃

*IP66 outdoor use

Part Number:PT-PSE108GR-OT

Ports condition:LAN Port*1, AC Input Port*1, PoE Output

Port*1

Regulatory Compliance:

IEEE802.3at

RoHS Compliance

WEEE Compliance

Pass Through:Data Rates 10/100/1000 Mbps

Output Pin Assignment and Polarity:4/5 (+), 7/8 (–)

Output Power Voltage: 55Vdc

User Port Power: 30W Guaranteen

Input:Input Voltage: 100-240Vac

Frequency: 50/60Hz Typ

Working Environment:Operating Temperature: -40℃ to 65℃

Operating Humidity: 20% to 80%, non-condensation

Storage Temperature: -40℃ to 85℃

Storage Humidity: 10% to 95%, non-condensation

Operating Altitude: up to 5000meters

PoE Surge Protection:Protected line: 1,2,3,4,5,6,7,8

Common mode surge protection(10/700us): 6KV

Differential mode surge protection (10/700us): 1.5KV

AC Surge Protection Line-Earth 1.2/50us (8/20us): 6KV

Line-Line 1.2/50us (8/20us):4KV

Mechanical Characteristics

Case: Metal Color: White

Mounting: Pole-mounted

IP Rated: IP66

Connectors: Shielded RJ-45*2

Size: 176X 269 X 65mm

Weight: 1.8kg(3.97lb)

LED Indicator Power Indicator : Green

PoE Load Indicator : Yellow

Warranty:2 year

Safety Approvals:CE,FCC

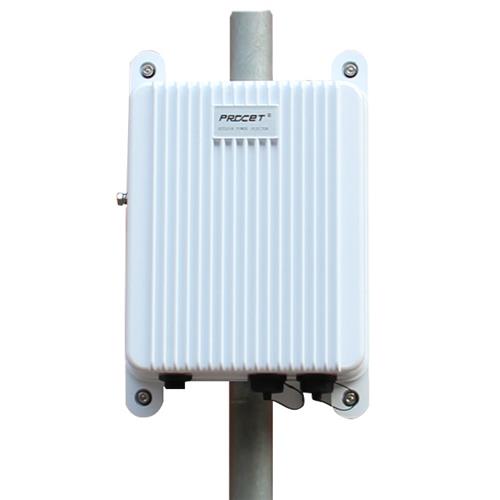

Procet Outdoor Industrial IEEE802.3 bt 30W PoE Injector PT-PSE108GR-OT
