Key Specifications
PT-PSE105G-E is a single port midspan Injector with 2 Pair PoE up to 30 watts of power at 55Vdc, at 0.55Amp with 6Kv surge protection.

Designed for the PoE+ powered 30W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3at and remains compatible with any IEEE802.3af compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

Enclosed in an IP40 high-impact metal case with DIN Rail mount bracket, designed for indoor use but can work outdoor by covered with waterproof case. It works with a wide input voltage of 12-48Vdc make it possible for solar application and operates under -40℃ to +65℃, For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.

Description

Key Features:* Industrial PoE can be outdoor use by covered with waterpro of case

*Surge protection at PoE port

*Gigabit data rates

*12-48VDC input make it possible for solar application

*DIN Rail mount

*IP40 high-impact metal enclosure

*Extend temperature from -40℃ to 65℃

*Diagnostic LEDs

Part Number:PT-PSE105G-E

Ports condition LAN Port*1, PoE Output Port*1, DC input Terminal Block *1

Regulatory Compliance:

IEEE802.3at

RoHS Compliance

WEEE Compliance

Pass Through Data Rates 10/100/1000 Mbps

Output Pin Assignment and Polarity:

4/5 (+), 7/8 (–)

Output Power Voltage: 55Vdc

User Port Power: 30W Guaranteen

Input: DC Input Voltage: 12 to 48 Vdc

DC Input Current: 4.0A

Working Environment: Operating Temperature: -40℃ to 65℃

Operating Humidity: 20% to 80%, non-condensation

Storage Temperature: -40℃ to 85℃

Storage Humidity: 10% to 90%, non-condensation

Operating Altitude: up to 5000meters

PoE Surge Protection: Protected line: 1,2,3,4,5,6,7,8

Common mode surge protection(10/700us): 6KV

Differential mode surge protection (10/700us): 1.5KV

Mechanical Characteristics Case: Metal

Color: Black

Mounting: DIN-rail

IP Rated: IP40

Connectors: Shielded RJ-45*2

Size: 144.5mmX 95mmX 35.4mm

Weight: 400g(0.88lb)

LED Indicator Power Indicator: Green

PoE Load Indicator: Yellow

Warranty:2 year

Safety Approvals:CE

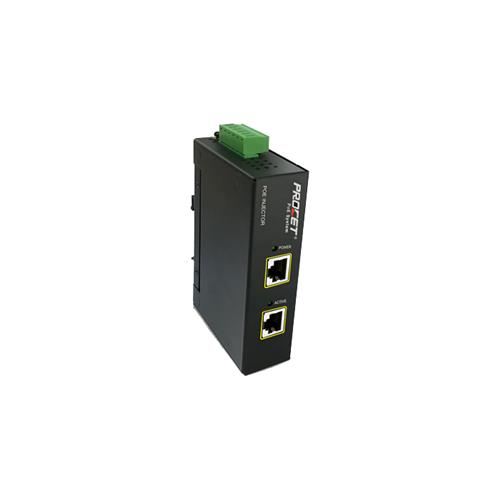

Procet Industrial Din-rail AT 30W PoE Injector PT-PSE105G-E
