Key Specifications

5 MP sensor and no moving parts

• Constant 360° surveillance with no blind spots

• No moving parts, no maintenance and silent operation

• Up to 30 fps video stream at 1 MP and ¼ MP

• 0.2 lux minimum illumination and electronic WDR

• PoE or 12 VDC powered • 3-years warranty

Advanced features

• microSD card slot for local event recording

• Configurable privacy regions

• Polygonal Video Motion Detection regions


Your transportation companion

With a diameter of only 108mm (4,25”) and a very slim profile, the Evolution 05 Mini Indoor Panel-Mount camera is designed for quick and easy installations in narrow spaces, anywhere a professional light weight camera is required. It has the EN50155/EN45545 transport certification and comes with either a RJ45 or M12 power plug.

Available in white or black, it is the ideal solution for markets where discreet installation is required or aesthetics matters.

An IK10 vandal-proof dome cover is available as an accessory (OBE-15-IWA / OBE-15-IBA).

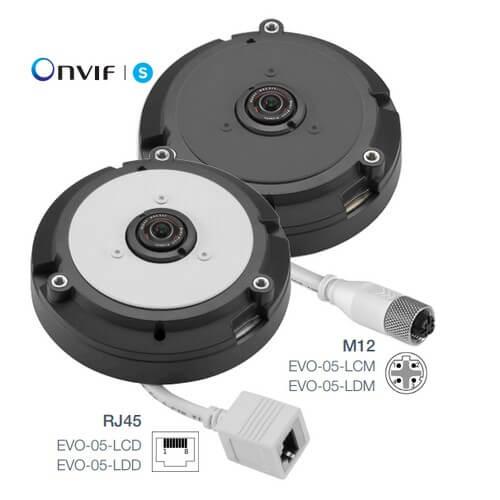

EVO-05-LCD (White / RJ45) / EVO-05-LCM (White / M12)

EVO-05-LDD (Black / RJ45) / EVO-05-LDM (Black / M12)
Oncam Evolution 05 - Mini 360° Panel-Mount Camera
