Key Specifications

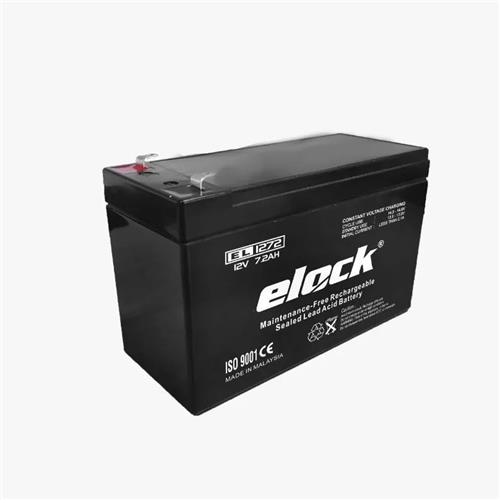

EL-BT-200 (Back up battery 12V 7.2AH) is constructed by plates,
separators, safety valves and container. Since the electrolyte is held
by a glass mat separator and plates, the battery can use in any
direction and position without leakage. Otherwise, the battery is
completely sealed and is, therefore, maintenance-free, leak proof and
usable in any position.
Specification
- Nominal Voltage(V): 12 volts (6cells in series)
- Nominal Capacity (AH):
20 hour rate F.V. (1.75V/cell) (350mA to 10.50volts): 7.0A.H.
10 hour rate F.V. (1.75V/cell) (665mA to 10.50volts): 6.65A.H.
5 hour rate F.V. (1.75V/cell) (1190mA to 10.50volts): 5.95A.H.
1 hour rate F.V. (1.55V/cell) (4200mA to 9.30volts): 4.2A.H.
- Approximate Weight: 2600g. (5.73lbs.)
- Internal Resistance (Fully Charged Battery): <25m
- Maximum Discharge Current For 5 sec.(A): 105A
- Maximum Charge Current(A): 2.1A
- Ambient Temperature:
Charge: 0 C(32 F)~40 C(104 F)
Discharge: 20 C(-4 F)~50 C(122 F)
Storage: 20 C(-4 F)~40 C(104 F)
- Vibration Test (2000 cycles/minute, 2.5mm excursion, 2 hours:
No loss in capacity or performance
- Case: ABS
- Protection Class : IP60
- Dimension(mm/inch): Length ±1mm: 151mm
Width ±1mm: 65mm
Container Height ±1mm: 94mm
Total Height ±2mm: 100mm
- Application: UPS Laboratory Equipment, Toy-Cars, Power Packs,
Fishing Lights.
