Key Specifications

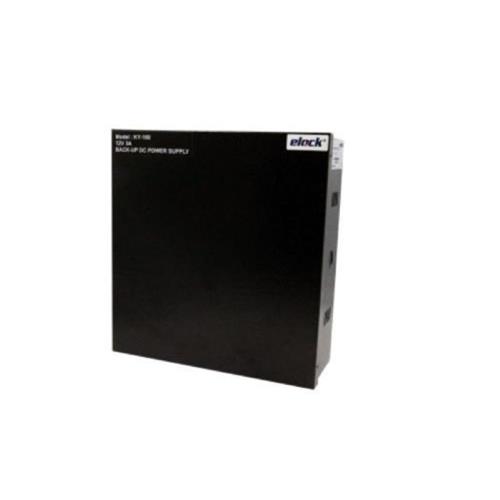

elock Power Supply KY-100 offers consistent & reliable regulated full 3 Amps 12Vdc output. Built-in with Battery charger circuit that enables user to have battery back-up features with battery.
- Overload Protection
- Built-in backup battery charger
- Battery low cut-off
- Output voltage adjustment.
- Dimension:- 245mm W x 255mm H x 88mm D
Specification
- Input Voltage: 220~240 Vac
- Input frequency: 50Hz / 60Hz
- No load power consumption: 12 Watts
- Output no load voltage: 13.5 Vdc
- Output rated voltage: 13.0 Vdc
- Output rated current: 3.0 Adc
- Maximum Power Consumption: 53 Watts
- Load regulation: NL to FL 3%
- Battery low cut-off: 10.5 Vdc
- Operating temperature: 0~65 deg C
- IP rating : IP20
- Casing Surface finishing: Oven baked Epoxy Powder coating.
