Key Specifications
- 600lbs holding force
- Operating voltage 12VDC & 24 VDC
- Current draw 500mA@12VDC / 250mA@24VDC
- MOV surge protection
- Fail-Safe type
- Monitored Model, Built-in Bond sensor Indicate the locked & unlocked status with visible LED indicator ( elock-600L )
- Push-off button on armature for instant release
- IP Rating : IP40
- Operating Temperature : −20⁰C to +55⁰C
- Humidity : 0% to 95%RH (non-condensing)
- Dimension : -

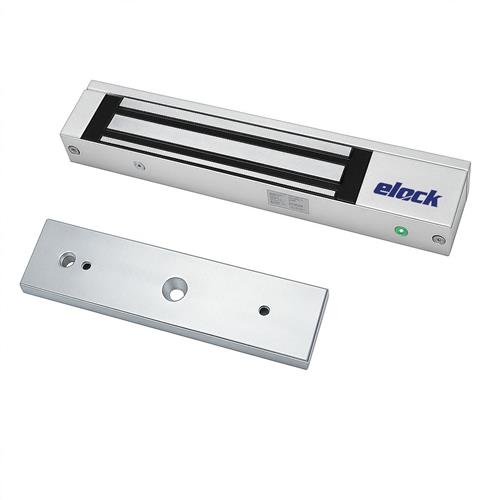

Magnet : 250(L) X 41(W) X 26(D) mm
Armature Plate : 170(L) X 38(W) X 11(D) mm
