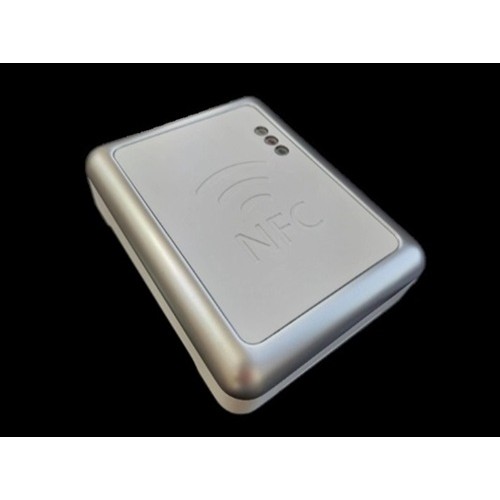

RS485 Modbus NFC Reader CT-NFC-G2AF-01H
Key Specifications
RS485 Modbus NFC Reader (CT-NFC-G2AF-01H) Main features
RS485 Modbus NFC Reader (CT-NFC-G2AF-01H) is Chilitag's first NFC reader with RS-485 transmission interface. It supports Modbus RTU protocol and is designed with 2 sets of I/O input and output interfaces. It has a modern appearance design. It is especially suitable for office, factory planning, access control management, site security inspection and other applications.
Call to Action
Visit us for product details
https://www.chilitag.com.tw/product_text_en.php?PID=59&CID=69&ID=234
The RS-485 Modbus NFC reader CT-NFC-G2AF-01H using the Modbus RTU communication protocol is an NFC short-range radio frequency identification card reader designed for industrial environment construction. It uses the RS-485 communication interface, which is a common device connection and control mechanism in offices, schools and factories, and can flexibly adapt to the installation environment; the RS-485 Modbus NFC READER CT-NFC-G2AF-01H is fully compatible with ISO /IEC 14443-A , ISO 15693 and NXP Mifare series contactless RFID chip IC cards have complete software tools and documentation manuals required for hardware development. Their easy-to-operate features can effectively shorten the development time of end products.
SPECIFICATION：
RFID PROTOCOL ISO/IEC 14443 -A (MIFARE family & NFC type 2), ISO 15693
FREQ. 13.56MHz
ANTENNA Integrated
READING DIST. UP to 40 mm (Test by Mifare Classic 1K ISO card)
Data Interface RS-485 115200,8 ,n ,1
Comm Protocol Modbus RTU
Power +12V / 250mA
OP. TEMP. -10°C ~ +60°C
Domension (House) 90 x 80 x 25mm
Weight 50g
Environment MCU, Embedded System, Ras berry
