CHILITAG Technology LTD.

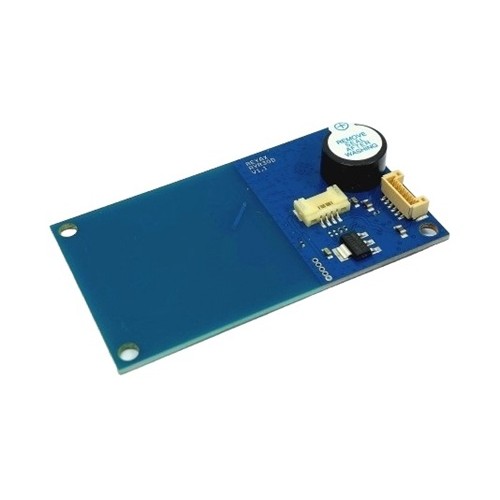

Mobile Wallet NFC Reader Module (RYRR30D) Main features
Mobile Wallet NFC reader (RYRR30D) has passed the Apple and Google VAS (Value Added Service) certification and can be used in various membership card and ticket applications in Apple Wallet and Google Wallet.

Visit us for product detail
https://www.chilitag.com.tw/product_text_en.php?PID=59&CID=80&ID=233

The Mobile Wallet NFC Reader module (RYRR30D) fully supports Apple Wallet VAS & Google SmartTap pass. As connection and security technologies continue to be upgraded, the application scenarios of Mobile Wallet are also expanding. In addition to common payment functions such as credit cards and debit cards (this product does not support payment functions), membership cards, tickets, point cards, and coupons stuffed in the wallet compartment are the most common things that can be "stored" into mobile wallets. Later, Even student ID cards containing personal ID information and identity documents from some states and regions in the United States can be directly accessed and used.

Mobile Wallet NFC Reader Model (RYRR30D) Designed USB & UART connection interface (one), non-uniform connection interface provided, additionally compatible, 13.56MHz frequency, support NFC platform TYPE I, II, III, IV and V number Sensitive crystal card (general reader model), can be used easily and easily for current NFC printing, standard anti-EMI electromagnetic design, customer end product successfully passed multi-country EMI electromagnetic testing certification.

Mobile Wallet NFC Reader module (RYRR30D) is certified by APPLE and GOOGLE VAS (value-added services) protocols and supports various virtual passes such as membership cards, tickets, employee/student ID cards on IOS and Android platforms, bringing the ultimate card-free experience user experience. Through the VAS protocol, the host terminal can select a specific wallet pass from the user's mobile phone through the unique merchant ID, and the user can enjoy an agile and convenient click-and-go experience.

The Mobile Wallet NFC Reader module (RYRR30D) is stable, reliable, can be directly integrated and used at a competitive price. It is one of the few Mobile Wallet NFC Reader solutions on the market that has obtained VAS certification. Suitable for various virtual pass management such as membership cards, tickets, employee/student ID cards, etc.

SPECIFICATION：
Certified Apple Wallet VAS, Google SmartTap pass
RFID Protocol ISO/IEC 14443 A/B, MIFARE Classic, ISO/IEC 15693, FeliCa, Topaz
Freq. 13.56MHz
Antenna Internal
Tag Read Dist. Up to 40 mm (Using Mifare Classic 1K ISO card)
Comm. Interface USB 2.0 full-speed / UART
Power Input +5V / 550mA (Max)
Operation Temp. -40°C ~ +85°C
Dimension 70 x 40 mm
Weight g
Support OS Windows, Android, Linux
