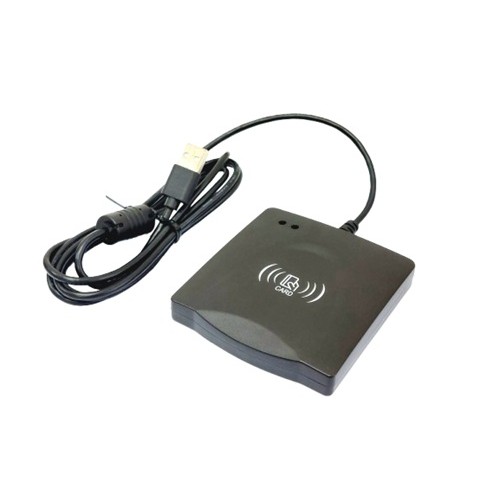

NFC Reader CT-NFC-F36I-01H
Key Specifications
NFC Reader CT-NFC-F36I-01H Main features
CT-NFC-F36I-01H NFC Reader supports ISO 14443 A/B, ISO 15693, FeliCa, USB CCID interface, average reading distance up to 50mm, suitable for ID cards, transportation tickets, and payment applications.
Call to Action
Visit us for product details
https://www.chilitag.com.tw/product_text_en.php?PID=59&CID=69&ID=245
Product Positioning
The CT-NFC-F36I-01H is a high-performance Desktop NFC Reader supporting ISO 14443 Type A/B, ISO 15693, and FeliCa contactless cards, fully compatible with ISO/IEC 18013-5 (mDL electronic driver’s license). With an average reading distance of up to 50 mm, it offers enhanced sensitivity and reliability, making it ideal for ID cards, transportation tickets, payment cards, and other applications.
Backed by Chilitag Technology’s expertise and compliance with international standards, the CT-NFC-F36I-01H delivers a stable and versatile solution for smart card integration.
Key Features
Supports ISO 14443 A/B, ISO 15693, and FeliCa protocols
Compatible with ISO/IEC 18013-5 (mDL electronic driver’s license)
USB CCID interface, driverless installation
Average reading distance up to 50 mm
Supports Windows and Linux operating systems
SDK, Demo Tool, and User Manual available
Product Description
The CT-NFC-F36I-01H NFC Reader acts as a bridge between computers and contactless smart cards, executing PC/SC commands to communicate with tags and cards. It supports multiple card families including NXP Mifare, ICODE, and FeliCa. The module features built-in LED indicators and ICC/PICC interfaces, making it suitable for integration into POS systems, medical devices, industrial computers, and e-ticketing solutions.
Technical Specifications
Product Name NFC Reader Module CT-NFC-F36I-01H
Supported Protocols ISO 14443 Type A/B, ISO 15693, FeliCa, ISO/IEC 18013-5 (mDL)
Supported Cards NXP Mifare Family (Classic, DesFire, Plus), NXP ICODE Family, FeliCa, ISO 14443A/B
Reading Distance Average 50 mm (depending on card type)
Host Interface USB CCID
Power Source From Host 5V / USB Type A
Built-in Indicators Blue LED ×1, Green LED ×1
Dimensions 87 mm (L) × 80 mm (W) × 14.5 mm (H)
USB Cable 140 cm
Operating Temperature -10℃ ~ +60℃
Supported OS Windows, Linux
Software Resources SDK, Demo Tool (Windows/Linux), User Manual
Applications
POS systems
Medical devices
Industrial computers
E-ticketing and ID verification
