Axis secures Moscow commercial center with reactions to unusual situations

Axis secures Moscow commercial center with reactions to unusual situations

Mission
The main objective when planning the video surveillance system was to monitor key zones inside the business center: hallways, elevator banks, reception area, service entrances, etc., as well as the entire surrounding site. The system also needed to be able to record the license plate numbers of vehicles entering the business center site.

Solution

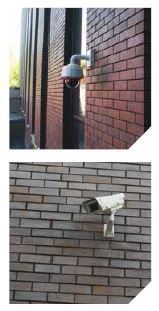

AXIS M3004-V and AXIS M3005-V Network Cameras with a resolution of 1 Mp/HDTV 720p and 2 Mp/HDTV 1080p respectively, were selected for video surveillance inside the business center. AXIS P1355Е Network Cameras with Lightfinder technology are used for 24-hour video surveillance of the surrounding site. This technology enables the system to obtain a quality color image under low light conditions.

Where there is no outdoor lighting, AXIS T90A40 infrared illuminators were installed along with the cameras. AXIS Q1604-E Network Cameras were used for vehicle license plate recognition. Video data is recorded on video servers with Intellect software. The AUTO-Intellect software module is used for license plate recognition. There is also a video surveillance post where images from all video cameras are displayed on eight monitors. A total of over 80 Axis network cameras were installed for the project.

Result
As a result, key zones inside the business center and surrounding site have been placed under surveillance, which allows the system to immediately react to any unusual situations.

High definition IP video surveillance
AXIS M3004-V and AXIS M3005-V Network Cameras with a resolution of 1 Mp/HDTV 720p and 2 Mp/HDTV 1080p respectively, were selected for video surveillance in elevator banks, hallways and the reception area. In addition to other advantages, these cameras have 3-axis adjustment and Axis' Corridor Format. This format is optimized for video surveillance in tall, narrow spaces, such as hallways or stairwells, and it maximizes the amount of useful data in the frame.

Video surveillance under poor lighting conditions
Providing quality video surveillance in the dark of night using megapixel cameras is currently quite a significant challenge. There are areas with insufficient artificial nighttime lighting around the Berezka business center perimeter. AXIS P1355ЕNetwork Cameras were selected to provide video surveillance under poor lighting conditions. These cameras use Axis's unique Lightfinder technology, which provides exceptional light sensitivity with color, even in low light.

AXIS T90A40 infrared illuminators were installed for some areas. A unique feature of these illuminators is that their optical path angle can be adjusted over quite a wide range. This means that the area illuminated with infrared can be adjusted to match the video camera view field.

License plate recognition
AXIS Q1604-E Network Cameras and AUTO-Intellect software (Uragan Slow-2) were selected for vehicle license plate recognition. Thanks to Wide Dynamic Range and the latest video image processing algorithms, AXIS Q1604-E Network Cameras can clearly identify license plates, even under changing conditions, such as oncoming vehicle headlights or pronounced contrast.

The AUTO-Intellect software recognizes 288 types of license plates containing numbers and Cyrillic and Latin characters. This is important, since vehicles with foreign license plates may enter the business center site.

Reliable signal transmission
70 high definition IP cameras create significant digital streams and traffic on active cross connect hardware. Under these conditions, it is important to select highperformance, reliable equipment. Additionally, specific features inherent to video surveillance must be considered when selecting equipment, such as the fact that all outdoor video cameras have High Power over Ethernet. Allied Telesis series AT-X610 high-performance switchboards were selected as a result of engineering calculations. Using stacking modules, all switchboards were connected to form one large virtual switchboard, which results in even greater overall performance. Switchboards were equipped with 800 W power sources in order to provide the outdoor cameras with power via High PoE.
