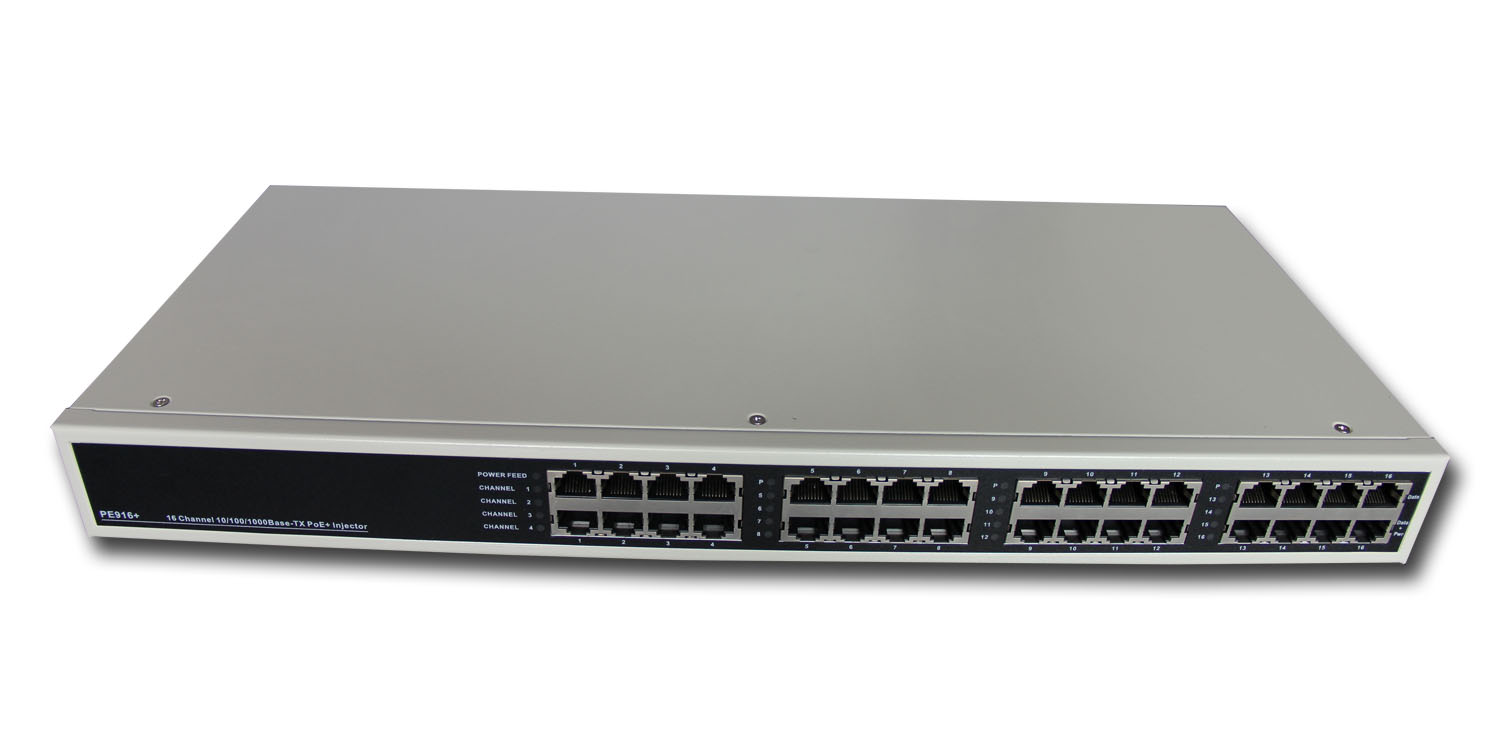

PE916 16 Channel Gigabit POE Injector

PE916 16 Channel Gigabit POE Injector

  • Supplier: HI-NET TECHNOLOGY COMPANY
  • Region: China
  • Updated: 12/17/2015
Product Specifications
  • The PE916 is 16 Channel gigabit POE Mid-spans (POE injectors). It is designed to fit fully IEEE802.3af and IEEE802.3at standard. Each POE ports can work with equipments that meet IEEE802.3af/IEEE802.3at standards like Voip Phone, PoE APs, IP Phones, IP cameras, etc.

    The PE916 is a 1U high 19'' case-shaped device. It is with the internal industrial power supplies, have two optional power supplies—250W, 480W. All POE ports support both IEEE802.3af and IEEE802.3at Standard; each port can output 30W max. Extend Function: Power lightning protection.

    •   IEEE802.3af and IEEE802.3at Standard
    •   32 Ports—16 Ports data input and 16 ports data+ power output
    •   Up to 30W of Power on 2-pairs
    •   Auto-detect of POE IEEE 802.3af/IEEE 802.3at equipment
    •   Supports 10/100/1000Base-T applications
    •   LED indicators power input indication
    •   Distance up to 100 meters
    •   Optional internal power supplies: 250W or 480W
    •   Easy plug-and-play installation
    •   EMI standards complies with FCC, CE class B
