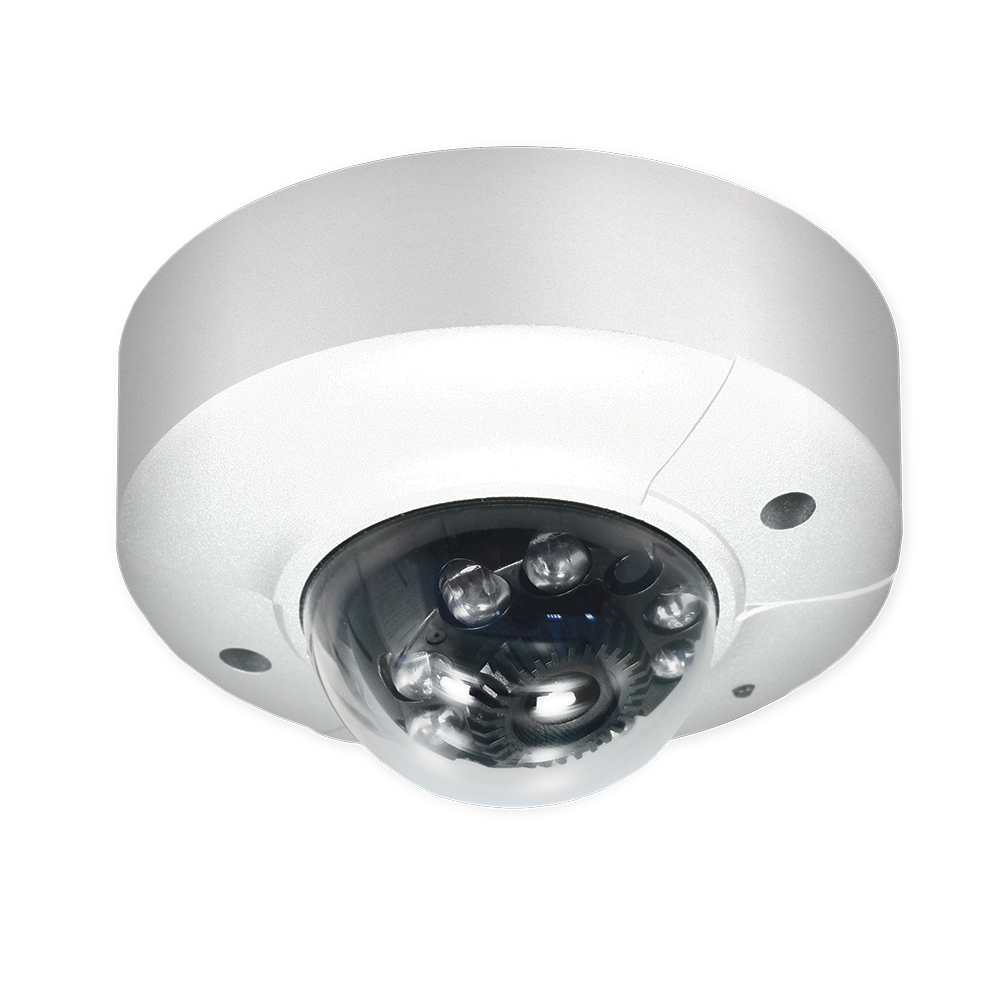

Pacidal DFD207 1080p DTV mini dome camera

Pacidal DFD207 1080p DTV mini dome camera

  • Supplier: MFNE
  • Region:
  • Updated: 12/15/2015
Product Specifications
  • Pacidal DFD207 is a new-generation 2-megapixel, mini dome camera adopting digital TV technology with excellent full HD 1080p video transmission over coaxial cables. If you are considering upgrading your current analog CCTV system to full HD quality, DTV surveillance is definitely your best choice. The installation process is quick and easy. The existing coaxial cables can be reused and the system deployment is the exactly same as CCTVs. So there is no need to re-plan the whole structure or re-deploy new cables. DFD207 has day and night function with built-in infrared LEDs, which can enhance the image performance under low-light conditions, with an effective illumination distance up to 20 meters (64 ft.). DFD207 is also suitable for ourdoor usage since its weatherproof IP66-rating casing helps prevent the camera against rain and dust. DFD207 transmits simultaneously dual video streams in H.264 (both individually configurable), including one HD stream and one SD stream, both at full frame rates (30fps). Its transmission range can be up to 1000 meters (3300 ft.) without using extra repeater.

    Features
    * Excellent full HD 1080p video quality over coaxial cables
    * Transmission distance up to 1000 meters (3300 ft.) without repeaters, using 5C-2V or RG-6 coaxial cables; 500 meters with 3C-2V or RG-59 coaxial cables
    * 1/2.7” CMOS with 1920 x 1080 resolution
    * Infrared LEDs with 20-meter effective illumination distance (adjustable)
    * Weatherproof IP66-rated
    * Dual, individually configurable video streams in H.264, including one HD stream and one SD stream, both at 30 fps
    * Internal microSD card slot for local storage
