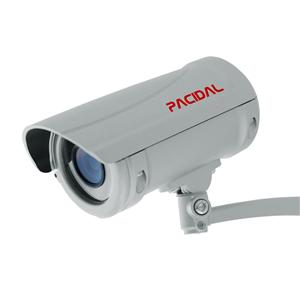

Pacidal DBL201 720p DTV bullet camera

Pacidal DBL201 720p DTV bullet camera

  • Supplier: MFNE
  • Region:
  • Updated: 12/15/2015
Product Specifications
  • Pacidal DBL201 is a new-generation megapixel, bullet-type camera adopting digital TV technology with excellent HD 720p video transmission over coaxial cables. If you are considering upgrading your current analog CCTV system to HD quality, DTV surveillance is definitely your best choice. The installation process is quick and easy. The existing coaxial cables can be reused and the system deployment is the exactly same as CCTVs. So there is no need to re-plan the whole structure or re-deploy new cables. DBL206 has day and night function with built-in high power infrared LEDs (or white light LEDs), which can enhance the image performance under low-light conditions, with an effective illumination distance up to 35 meters (112 ft.). DBL206 is especially suitable for ourdoor usage since its weatherproof IP67-rating casing helps prevent the camera against rain and dust. DBL206 transmits simultaneously dual video streams in H.264 (both individually configurable), including one HD stream and one SD stream, both at full frame rates (30fps). Its transmission range can be up to 1000 meters (3300 ft.) without using extra repeater.

    Features
    * Excellent HD 720p video quality over coaxial cables
    * Transmission distance up to 1000 meters (3300 ft.) without repeaters, using 5C-2V or RG-6 coaxial cables; 500 meters with 3C-2V or RG-59 coaxial cables
    * 1/4” CMOS with 1280 x 800 resolution
    * High power infrared LEDs (or white LEDs) with up to 35-meter effective illumination distance (adjustable)
    * Weatherproof IP67-rated
    * Dual, individually configurable video streams in H.264, including one HD stream and one SD stream, both at 30 fps
    * Internal microSD card slot for local storage
