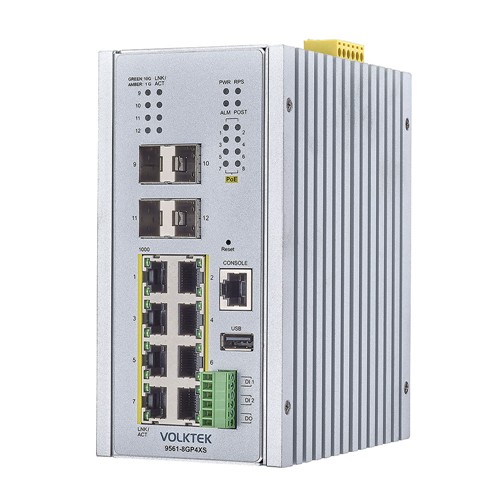

9561-8GP4XS-TSN Layer 3 TSN Industrial PoE++ Ethernet Switch
Key Specifications
Product Highlights
‣ Support Layer 3 routing - Efficient Inter-Subnet Communication
‣ 8 x 10/100/1000 btPoE ports – Supporting up to 90W per port for high-power PDs (Total PoE budget: 360W)
‣ 4 x 100/1G/10G SFP+ uplink slots – Supporting ultra-high-speed fiber connectivity for bandwidth-intensive applications
‣ 2 x pairs Dry Contact Digital Inputs (DI), 1 x Alarm Relay Digital output (DO)
‣ Full TSN & IEEE 1588v2 Support – Ensuring deterministic data transmission and precise time synchronization
‣ G.8032 & HSR/PRP Redundancy – Guaranteeing continuous network uptime and zero downtime
‣ Industrial Grade Design – Rugged IP30 aluminum housing with -40˚C~70˚C (-40°F~158°F) operating temperature
Overview
The 9561-8GP4XS-TSN is a managed industrial TSN switch featuring 8-port 10/100/1000BASE-T btPoE RJ45 interfaces and 4-slot 100/1G/10G SFP+ uplinks. It also includes one RJ45 console port and one USB port for firmware upgrades and configuration maintenance. This switch is engineered and designed especially for harsh & extreme industrial applications, featuring high tolerance to vibration and shock, and a wide operating temperature range from -40°C to 70°C.
It supports advanced Power over Ethernet capabilities including btPoE (IEEE 802.3bt) delivering up to 90W, enabling power-hungry devices such as high-end IP cameras and wireless access points to be operated without additional power sources. The PoE management features allow per-port power monitoring, prioritization, and scheduling to optimize power distribution and efficiency.
Additionally, the switch supports precision timing protocols such as IEEE 1588 and 802.1AS-Rev, making it ideal for applications requiring synchronized operations. Advanced features like G.8032 and full TSN support, along with TSN Domain Protection, enhance network reliability and security.
