Key Specifications
CPU HiSilicon dual-core
Memory RAM:1G; ROM: 4GB
Screen Size(inch): 8 inches(MIPI) IPS
Resolution: 800*1280
Angle of view: full-aspect
Lightness: 500 cd/m2
Camera 2 million pixels,90dbWDR
Visible light field of view: 65°
Identification mode Face, IC card/CPU card
Identification speed Card identification<0.1s, face identification<1s
Identification technology Binocular liveness detection,visible light+infrared identification
Identification distance Face+temperature50~200cm(suggestion 100cm)
Face library 20000pcs faces
Camera complementary light 4 Infrared+12White light intelligent fill light; Object induction: microwave
sensor; Light sense: light sensitive sensor
Body temperature Infrared imaging temperature monitoring
FOV(calculated value) 59°× 44°
Resolution 160×120

Temperature measurement
accuracy (room temperature) ± 0.5℃, 0.3℃ after black body calibration
Blackbody target surface 2cm×2cm
Blackbody temperature setting range 
Temperature value from room temperature to 50℃

Voice broadcast  Support
communication  mode Ethernet 10M/100M, WIFI optional
Data transfer protocol UDP, TCP/IP
Port 1 way wiegand input or output;1 way relay;1 way magnetic signal;1 way door button;1 USB;1 RS485;1 power supply
Waterproofing grade IP54
Temperature 0℃-+50℃
Humility 10%-90%
Power supply DC12V 2A
Case material Aluminium alloy (CNC)
Dimension 243*127*32mm(dimension not include post, not include external camera),
Wall mounted/post mounted

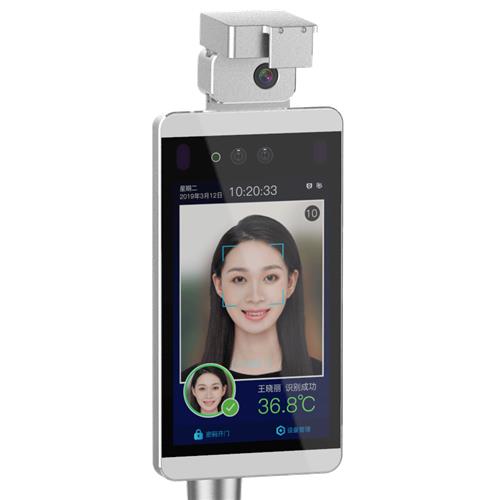

AI Face Recognition terminal with access control
