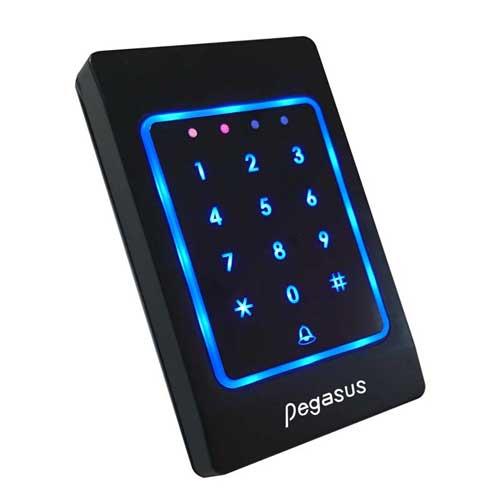

Touch Key Access Controller(PP-33）
Features for time recording application:
•Selectable batch or real time operation mode.
•79 duty codes, duty name defined by PC.
•Possible in 8 digits ID for time attendance recording.
•Totally 192 alarm schedules (8 schedules per hour) dry contacts output for periodic belling.
•Could collect data through PC by real time or one by one events or massive block dump.
•High capacity with 8 digits card number. ( Either checking or without checking personal map)
•With doorbell switch for door bell actuation.(Optional)
Main features for access control application:
•System parameters and personal access map can be downloaded by PC or manually programmed through keypad.
•The personal access map is consisted of card ID, staff number and name, PIN and Time Zone Status, expiry date and Anti-passback.
•Excellent multiple operation modes :(1) Card only (2) Card + PIN (3)Door PIN only (4)Card Number+PIN (5)Free access (6) Automatic operation mode by time zones with PIN duress & lockable functions.
•All operation modes with PIN are supported by selectable duress function. Also, keypad is lockable to become dumb.
•Individual personal access map can be edited by block range add or delete card in group basis by on-lined PC or by manual thru. single / block range card number or by directly reading card thru. learning mode.
•Selectable immediate or batched conditional sorting and then printing out events thru. serial output interface.
•With complete door release, held monitoring and intruded alarm period and error trials.
•Supports 8/24/48/64/96 floors lift access control.
•Full APB (anti-passback), time zone.
•Could dump all personal map in system by single PC or manual command.
