Key Specifications
Features
*It can connect off-line and on-line controller.
*Scan the Barcode or QR code to record the access events.
*Built-in buzzer for sound notification.
*Applied with EM card / Mifare card / Felica card / DESFire card / QR code / Barcode
*Provides tamper switch.
*Ability to read multiple formats.
*With CPU watch-dog function to prevent malfunction.
*Provide OEM/ODM projects development.

Specification
RFID frequency: 125KHz ASK/125KHz FSK/13.56MHz

Applicable cards: EM 4001,EM 4102 compatible / TEMIC 5557/ Mifare S50, S70, Ultra Light

Output format (Interface): RS-232 / RS-485 / Wiegand 26/34bits

Mounting: Surface Mount
Power input:DC 12V


Ordering information
PQ-510HW: 125KHz FSK HC & QR Code(Barcode) proximity reader, Wiegand 26&34bits, DC 12V

PQ-510H2W: 125KHz FSK HC & QR Code(Barcode) proximity reader, HC(Wiegand 26~37bits,Depending on card),QR code(Wiegand 26&34bits), DC 12V

PQ-510NW: 125KHz ASK EM & QR Code(Barcode) proximity reader, Wiegand 26&34bits, DC 12V

PQ-510M0W34: 13.56MHz Mifare & QR Code(Barcode) proximity reader, Wiegand 34bits, Read card number: in reverse, DC 12V

PQ-510M0W34S: 13.56MHz Mifare & QR Code(Barcode) proximity reader, Wiegand 34bits, Read card number: in positive, DC 12V



Mifare is a registered trademark of NXP B.V.
MIFARE DESFire is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.

Specifications subject to change without notice for further modification.

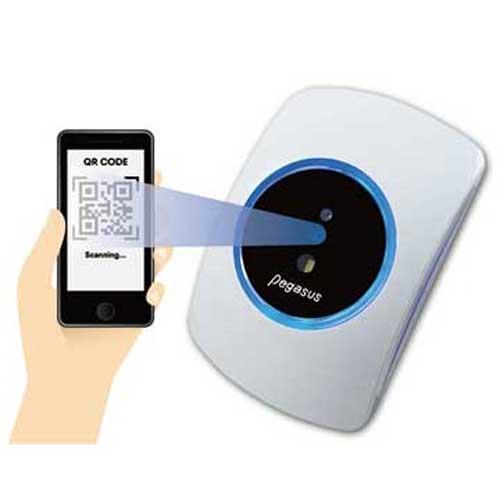

QR Code And RFID Card Reader(PQ-510)
