Key Specifications

Overivew

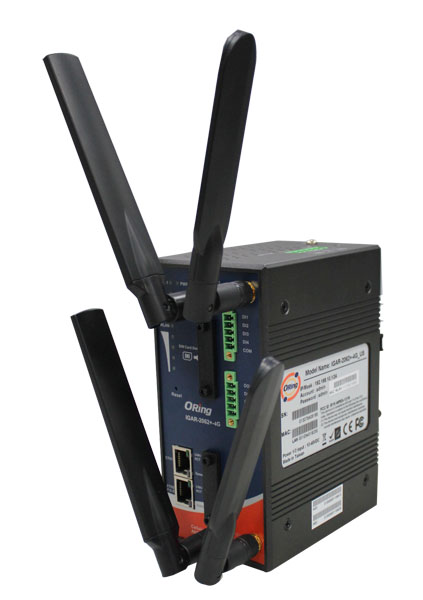

IGAR-2062+-4G is a reliable IEEE 802.11 a/b/g/n WLAN VPN router with 2 ports 10/100/1000Base-T(X) router where ETH1 for LAN and ETH2 for WAN. It supports 802.1X and MAC filter for security control. It could be configured to operate in 3 modes of routing function: Dynamic/Static IP route, PPPoE authentication, and Modem dial up. In the mode of Modem dial up, it support GPRS/3G/3.5G/LTE modem by internal cellular module. Users can set up WLAN environment to fulfill demands of various applications rapidly by dual SIM dialing up cellular modems. In addition, IGAR-2062+-4G provides P.D. feature on ETH2 which is fully compliant with IEEE802.3af PoE P.D. specification. This feature extends the layout up to 100 meters. Therefore, IGAR-2062+-4G is one of the best solution for applications of wireless communication.



Features

•High Speed Air Connectivity: WLAN interface support up to 300Mbps link speed

•Provide 2 port 10/100/1000Base-T(X) port and 1 sim card slot

•Support dual 4G LTE dial up backup and load blance

•Provide HNAT enhance LAN to WAN routing performance

•Highly Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported

•Secured Management by HTTPs

•Various kind of WAN Connection Type supported: Dynamic/Static IP, PPPoE, Modem/Dial Up

•Support client operating mode

•IP table to prevent access from unauthorized IP address
•Support VPN for secured network connection (Open VPN , PPTP, IPSEC VPN)
•Support NAT Setting (Virtual Server , Port Trigger , DMZ , UPnP)
•3G Modem signal information display (un-connecting status)
•Wireless connecting status monitoring
•Versatile modes & event alarm by e-mail
•1KV isolation for PoE P.D. port
•Event Warning by Syslog, Email, SNMP Trap, Relay and Beeper
•Rigid IP-30 housing design
•DIN-Rail and Wall-mount enabled

ORing IGAR-2062+-4G industrial IEEE 802.11 a/b/g/n Dual 4G LTE Cellular Route
