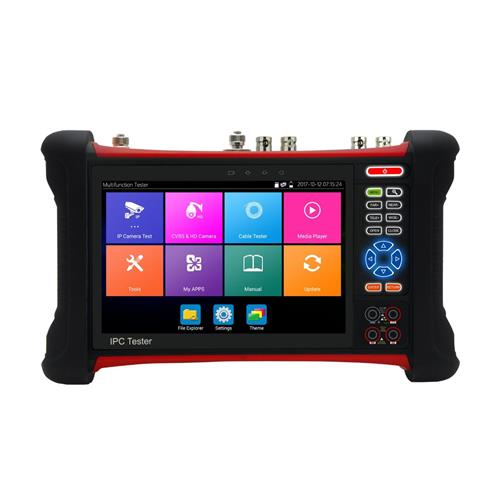

Hot 7 inch dahua cctv tester X7-MOVTADHS for 8MP TVI CVI AHD IP Analog camera test
Key Specifications
Hot 7 inch dahua cctv tester X7-MOVTADHS for 8MP TVI CVI AHD IP Analog camera test
● 7 inch retina touch screen, 1920*1200 resolutions
● H.265 & H .264 IP, 4K video display via mainstream
● 8MP TVI test,3840 x 2160P 15 fps,4xzoom ,video record &playback ,coaxial PTZ control & call OSD menu *
●8MP AHD test, 3840 x 2160P 15 fps, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *
● 8MP CVI test, 3840 x 2160P 12.5/15fps, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *
● HD SDI/EX-SDI camera test, support 1080P SDI, 4K EX- SDI
● Rapid ONVIF, Auto log in and display image, create testing report
● AXIS, Hikvision camera test
● CVBS camera test and PTZ control
● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
● Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement
●DC12V/2A power output,
● 48V PoE power output power
●Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
● CVBS loop test, to check BNC cable
● Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
Cable test:
● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test
● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, max test 180m
● Cable tracer, search BNC cable, network cable and telephone cable from the mess cables *
● TDR v2.0 cable test, pinpoint cable faults with curve. Support BNC cable, telephone cable, cat5/6, coaxial cable etc Max 1.2 KM cable test.
Other functions:
● Digital multimeter, support record data and create report
● Optical power meter,covers wavelength 1625nm,1550nm, 1490nm, 1310nm ,1300nm, 850nm. For optical power testing and Fiber link loss relative measurement.
● Visual fault locator app: emit red visible laser source, for testing fiber whether break and find break point.
● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
● POE & power information, DC12V& PoE power and voltage output /input measurement
● Tester Play: Tester, android version mobile phone and PC display at the same time
● HDM input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display,record and snapshot *
● 8GB SD card including
● 7.4 V /5000mAh Lithium Ion Polymer Battery, after 6~7 hours charging , working time lasts 10 hours
