Key Specifications

Feature:
• HDTVI 1080P
• HDTVI output
• Vari-focal lens: 7~22mm
• 3DNR / 2DNR
• Built-in IR Cut Filter, accurate focus for Day & Night.
• Optional: OSD cable.
• High video quality on HD 1080P.
• Transmit video signal, audio signal and dual-way data communication signal over one coaxial cable.
• HD video transmission without video quality loss & delay.
• Extremely long transmission distance.(300M)
• The same connection structure as original analogue system without cable (Coax / UTP) changing


Specifications:










































































Pick up device 1/3” CMOS : 2.0 Mega
Resolution 1920(H) x 1080(V) @ 25 / 30FPS
Lens Type Vari-focal lens: 7~22mm
Synchronization Internal
Scanning System 2:1 Interlace
Electronic Shutter Auto / 1 / 60 (1/50) ~1 / 50,000 sec / FLK
Min. Illumination 0.04 lux color / F2.0 (50IRE) / 0 Lux IR ON
Video Output HDTVI
IR Cut Yes
IR Distance 50M~60M
Video Output 1.0 Vp-p / 75 ohm composite
Operating Temperature -10℃ ~ 50℃ (14℉ ~ 122 ℉)
Storage Temperature -20℃ ~ 70℃ (-4℉ ~ 158℉)
Dimension 78.5(W) x 120.2(H) x 265.2(D) mm
Weatherproof IP66
Coaxial Cable Transmition Distance (3C/5C) 300 / 500 M
Twisted Cable Transmition Distance 300 M

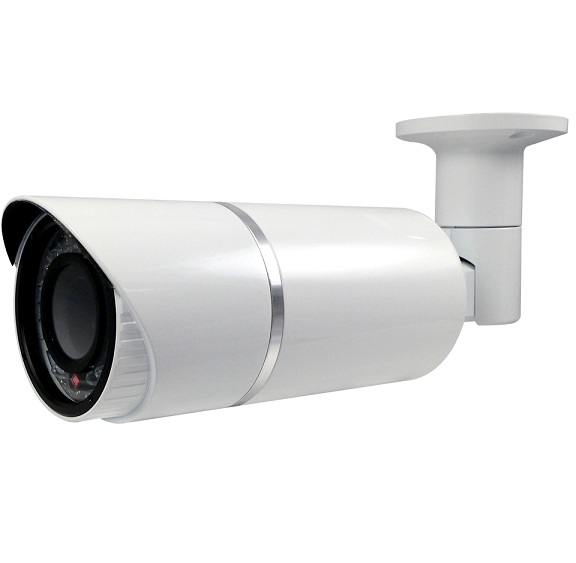

Hi Sharp HS-TVI829V HDTVI Middle Distance IR Camera
