Key Specifications

Features:
• AHD 720P
• AHD or 1280H Video Output
• Board lens: 6mm
• 3DNR / 2DNR
• Built-in IR Cut Filter, accurate focus for Day & Night.
• Smart camera supported motion and PIR detectionsystem with white light and IR LED.
• Unlike other general IR cameras which can onlypresent B/W image at night, exclusively design as a motion detection system to activate the white light LED within 3M~7M camera lens range distance in color image, in the other hand when IR is ON, shows B/Wimage only.
• Power saving control, also it can be an auxiliary lighting and warning purpose.
• Installation Field: Basement / Underground parking / Factory / Lane / Stairs / Passage / Courtyard / Enclosure.


Specifications:










































































































Pick up device 1/3” SONY CMOS : 1.3 Mega
Resolution 1280(H) x 720(V) @ 30FPS
Lens Type Board Lens : 6mm
Synchronization Internal
Scanning System 2:1 Interlace
S/N Ratio More than 55 dB(AGC OFF)
Electronic Shutter Auto 1 / 60 (1 / 50) ~ 1 / 50,000 sec / FLK
Min. Illumination 0.04Lux ( F2.0 , AGC ON)
Video Output AHD or 1280H
White light Distance <30M
White Light Trigger 8Lux
Motion Detect Rrange 3M
Motion Detect Light change / Picture change
PIR detect range 7M
PIR detect Temperature
3-Axis P-T-T (Pan-Tilt-Twist)
IR Cut Yes
IR Distance 40M
Video Output 1.0 Vp-p / 75 ohm composite
Power Source DC12V ± 10% / 1A
Operating Temperature -10℃ ~ 50℃ (14℉ ~ 122℉ )
Dimension 119(Diameter) x 85(D)mm
Weatherproof IP66
Coaxial Cable Transmition Distance (3C/5C) 300 / 500 M
Twisted Cable Transmition Distance 300 M

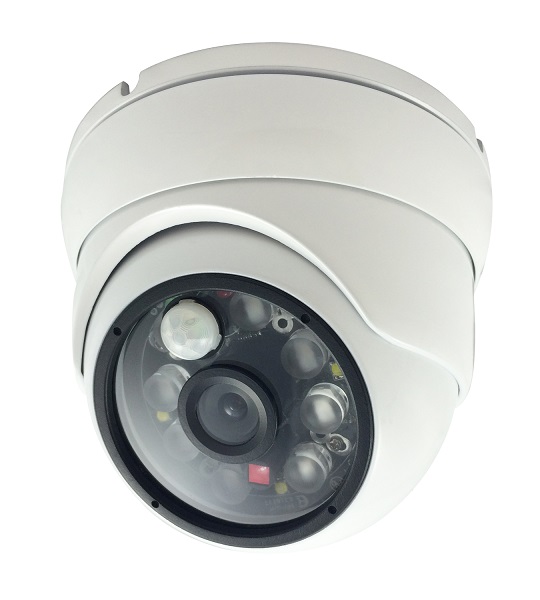

Hi Sharp HS-AHD721W  AHD Anti-Crime Smart Dual Light LED Camera
