Key Specifications

Overview

Multiply your points of sale at a lower cost



Instant card printing from independent terminals allows companies, banks and even universities to improve the quality of service offered to their customers and members thanks to:



* Immediate service anytime, anywhere 24/7

* Reduced waiting times

* Cards can be customized with several designs or the use of a personal photograph.



Adopting self-service terminals for card printing helps rationalize the costs and the operation of your establishment, and allows you to reach more customers:



* Reduced staffing costs

* Loyalty program used in real time

* Lower operation and maintenance costs

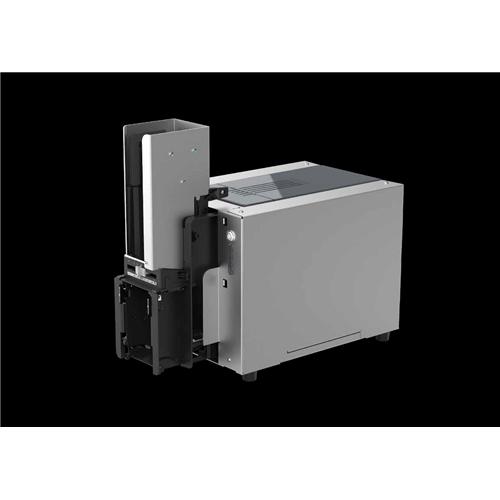

KC200 : compact, robust and cost-effective card printers



KC200 and KC200B printers offer cost-effective solutions to enable instant issuance of personalized plastic cards. The Evolis Premium SDK and the total accessibility of the various components and connectors allow KC200 and KC200B to be smoothly integrated into any type of self-service kiosks.



KC200 and KC200B printers successfully combine compactness and autonomy with a 200-card feeder.



KC200 and KC200B benefit from Evolis latest innovations in card printing modules. The metal housing of these printers makes their integration into your system simpler and durable.





Advantages

Printers configured on demand and easy to use



You can easily configure card management:

* cards returned using an exit slot (bezel on KC200B printer)

* different configuration possibilities like frontal or rear feeding and card exit.



KC200 and KC200B solutions are fully modular:

* single or dual sided cards printing

* encoders for magnetic stripe or for contact and contactless smart cards.



In order to limit and facilitate everyday maintenance operations, KC200 and KC200B printers offer remote notifications on the status of the printer and consumables such as the card or ribbon level alert. Thanks to the Evolis Premium SDK, you can integrate KC200 and KC200B into your own application and monitor them over a local network or the cloud.



Evolis, a partner of choice for your card issuance projects



Working closely with system integrators and kiosk manufacturers, our teams integrate Evolis card personalization modules into all types of self-service kiosks.



Evolis is the world leader in decentralized printing of personalized cards. With a presence in every continent, Evolis has been involved in implementing various projects for card printing using self-service terminals. Our project expertise lies in the following areas in particular:

* Support at all times and during all phases of your project from a dedicated project manager and team

* Precise needs analysis in order to take all your specific requirements into account

* The capacity to develop customized solutions in record time using an on-site, fl exible, and high-performance industrial tool

* Skill transfer from our teams to yours and technical support available from our various centers of expertise.



Evolis has demonstrated its skills in a range of different projects: ID cards, bank cards, loyalty cards, gift cards, event badges, and many more.



General Features



* Dual-sided printing module

* Edge-to-edge printing

* Color dye sublimation, monochrome thermal transfer

* Standard 300 x 300 dpi resolution

* Customizable 300 x 600 dpi resolution or 300 x 1200 dpi resolution (monochrome printing only)

*32 MB memory (RAM)





Printing performances

- Single side:

 * Color (YMCKO): 20.5 s per card

 * Monochrome: 7 s per card

- Dual side:

 * Color (YMCKO-K): 28 s per card





Interfaces

* USB (1.0, 1.1, 2.0, 3.0)

* Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led)


Loading and Returning cards

- Card input hopper: 200 cards (0.76 mm - 30 mil) or 100 cards (0.76 mm - 30mil) without metallic cassette

- Reject slots for defective cards

- KC200: card exit in the kiosk terminal output tray

- KC200B:

* Manual card insertion and return with bezel

* Ability to retract unretrieved cards





Card specifications

- Card thickness: 0.76 mm (30 mil)

- Card types: PVC cards, composite PVC cards, PET cards, ABS cards1, special varnished cards

- Card format: ISO CR80 - ISO 7810 (53.98 mm x 85.60 mm)





Additional Encoding Modules

- Available modules:

 * Magnetic stripe encoder ISO 7811 HiCo/LoCo

 * Contact smart card encoder - PC/SC, EMV 2000-1

 * Contactless smart card encoder - ISO 14443A, B,

- ISO15693, Mifare, DesFire, HID iCLASS

 * Other specific encoders upon request

 * Internal USB or IP ports

 * Options can be combined





Safety

- Data encryption for magnetic encoding





Display

- Printer LEDs

- Printer graphical notifications: empty input hopper, empty/low level ribbon alert...





Evolis High Trust Ribbons

To maximize the quality and durability of printed cards, the lifespan of the print head and the overall printer reliability, use Evolis High Trust ribbons.

- Ribbon capacity:

 * YMCKO: 300 prints/roll

 * YMCKO-K: 200 prints/roll

 * ½ YMCKO: 400 prints/roll

 * KO: 600 prints/roll

 * Black monochrome ribbon: 2000 prints/roll

 * Other monochrome ribbons: 1000 prints/roll

 * SO-KO: 250 prints/roll

- Ribbon saver for monochrome printing





Software

- Compatible with Windows® (32/64 bits): XP SP3, Vista, W7, W8, W10

- Mac OS X (from 10.6 onwards)

- Linux upon request

- Evolis Premium Suite :

 * Printer driver

 * Evolis Print Center for printer administration and settings

- Evolis Premium SDK for remote supervision of the printer, while facilitating and speeding up integration into IT systems





Eco-friendly Design, Certifications and Statement of compliance

- Standby, sleep modes & reduced energy consumption

- CE, FCC, ICES, VCCI, CCC

- RoHS



Operating environment

- Standard operating temperature and humidity rate:

 * 15° / 30° C (59° / 86° F)

 * 20% to 65% non-condensing

- Min / Max operating temperature and humidity rate:

 * 0° / 40° C (32° / 104° F)

- Min / Max storage temperature: -5° / +70° C (23° / 158° F)

- Storage humidity rate: 20% to 70% non-condensing

- Operating ventilation: free air



Size and Weight

- Size (H x W x D):

 * KC200: 307 x 199 x 378 mm (12.09’’ x 7.84’’ x 14.88’’) with feet: H: 322 mm (12.68’’)

 * KC200B: 307 x 199 x 399 mm (12.09’’ x 7.84’’ x 15.70’’) with feet: H: 322 mm (12.68’’)

- Weight:

  * KC200: 5.6 kg (12.34 lbs)

  * KC200B: 5.8 kg (12.78 lbs)





Warranty

- 1-year warranty (printer and print head)

- Warranty extension available as an option
