Key Specifications
3D axis vari-focal IR dome camera

1/3-inch Sony super HAD CCD sensor with digital noise reduction

Vari-focal lens: 3.7~12mm

Resolution: 540TVL

Minimum illumination:

    IR LED off: 0.1 lux (F 1.2 AGC on, 30 IRE) 0.001 lux (F1.2 AGC on,

    B/W mode, sense up on)

    IR LED on: 0 lux

    Illumination: 35 x LED wave length at 780nm ~ 1100nm

Auto gain control (AGC): on (36dB) / off

Back light compensation (BLC): on/off (dip switch adjust)

Voltage: 12V DC / AC 24V

Easy adjustment with 3D axis bracket

IP66 vandal proof design

Download Detail Specification http://www.elitar.com/ppdtView.asp?nid=87

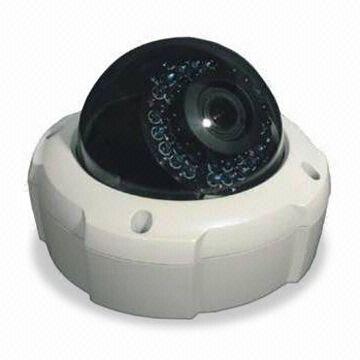

DAR-320H-VDX (3D Axis Vari-Focal IR Dome Camera)
