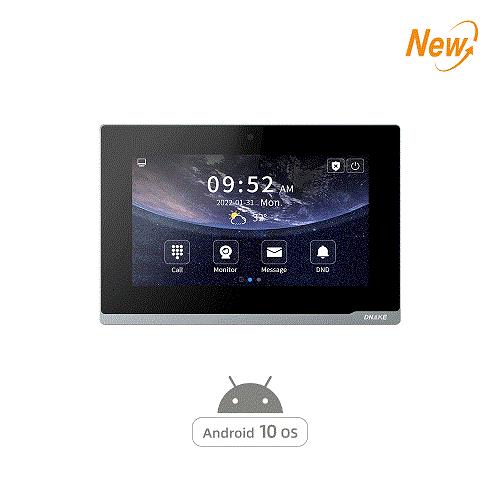

DNAKE E416 7” Android 10 Indoor Monitor
Key Specifications
Physical Property
System:Android 10
RAM:1GB
ROM:8GB
Front Panel:Plastic
Power Supply:PoE (802.3af) or DC12V/2A
Standby Power:3W
Rated Power:10W
Wi-Fi:IEEE802.11 b/g/n,@2.4GHz (Optional)
Installation:Surface Mounting/Desktop
Dimension:195x130x14.5mm
Working Temperature:-10℃ - +55℃
Storage Temperature:-10℃ - +60℃
Working Humidity:10%-90% (non-condensing)
Display
Display:7-inch TFT LCD
Screen:Capacitive touch screen
Resolution:1024 x 600
Audio & Video
Audio Codec:G.711
Video Codec:H.264
Networking
Protocol:SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
Port
Ethernet Port:1 x RJ45, 10/100 Mbps adaptive
RS485 Port:1
Power Output:1 (12V/100mA)
Doorbell Input:8 (Use any alarm input port)
Alarm Input:8
TF Card Slot:1
