Key Specifications
Description

The ICR-W403 is a high-performance industrial grade wireless gateway. combines IEEE802.11b/g/n/ac WLAN and 4G LTE cellular technologies to provide flexible wireless network connectivity.It is designed to offer the flexible connectivity over cellular and Wireless LAN for industrial applications. ICR-W403’s Ethernet ports can allow up to 3 Ethernet devices link, provides dual SIM cards for failover redundancy to ensure uninterrupted connectivity. ICR-W403 with support for secure VPN communications, GPS, static and dynamic IP routing of RIP1/2 and OSFP, NAT, port forwarding, Firewall, built-in DI/DO and Serial port services. In addition, ICR-W403 uses the highest level of industrial grade design for connected in the most demanding environments, is ideal solution for Industrial Internet of Things (IIoT) and M2M(Machine-to-Machine) applications, such as remote control and monitoring, bus ticketing collection system, CCTV, SCADA, digital signage, kiosk and intelligent traffic systems.

Features

▪ 4G LTE, GPS, IEEE 802.11b/g/n/ac WiFi, 2x SIM card, 3x GbE RJ45 LAN/WAN + 2x DI + 1x DO, 1x RS232 com port

▪ Supports multi-band connectivity with FDD 4G LTE/ TDD 4G LTE/ 3G WCDMA/2G GSM

▪ Supports concurrent dual band WiFi With 802.11n 2T2R (2.4GHz), and 802.11ac 2T2R (5GHz)

▪ Supports 4G LTE/ WiFi/ UTP port to configure WAN ports for failover redundant

▪ Supports GPS and GNSS for location tracking

▪ Built-in NAT/Port Forward/Routing/IPv6 are compatible with existing IP networks

▪ Builid-in various VPN protocols for security, Firewall & IPS, ACL & Authentication by MAC/User to enhance access security

▪ IEEE 802.11 a/b/g/n/ac, multiple SSID, captive portal for WiFi hotspot

▪ Web, CLI ,SNMP, TR069, SMS for management and configuration

▪ Events triggered by pre-defined, and notification sent by SMS, SNMP trap, or e-mail

▪ Supports USB for log storage

▪ EN-60950-1, CE, FCC, Rail Traffic EN50121-4 certified

▪ Heavy industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified

▪ Rugged metal, IP30 protection & Fanless design

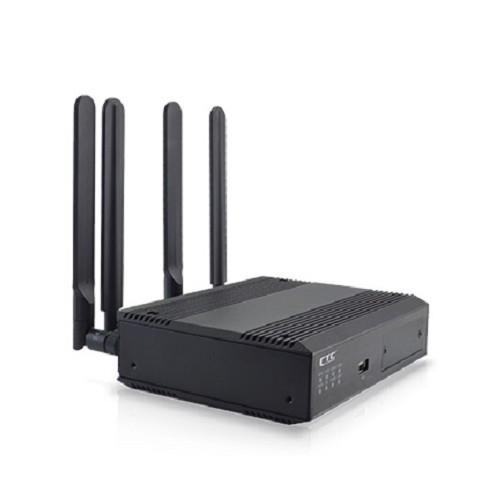

Industrial 4G LTE Gateway - ICR-W403
