Key Specifications

Specification

Architectural Overview
* Radar type: E-scan Frequency Modulated Continuous Wave (FMCW) Doppler Ground Surveillance Radar (GSR)
* Frequency band: Ku band
* Spectrum occupancy:
– Wide-band (WB): 15.7 to 17.2 GHz
– Narrow-band (NB): 16.2 to 17.2 GHz
* Scan type: fully electronic scanning in azimuth ('e-scan') using a Passive Electronically Scanned Array (PESA)
* Transmitter power (nominal): 1 Watt (standard power transmitter version) or 4 Watt (high power transmitter version)
* Multi-radar operation: supported and unlimited
* Embedded software and firmware: field upgradeable via network connection
* Target Detection Performance
* Maximum detection ranges:
– Crawling person (RCS 0.1 m²): 4.6 km (2.9 mi.)*
– Walking person (RCS 1 m²): 11.0 km (6.8 mi.)*
– Moving RIB (RCS 5 m²): 16.0 km (9.9 mi.)*
– Moving vehicle (RCS 30 m²): 20.0 km (12.4 mi.)*
– Large moving vehicle (RCS 100 m²): 25.0 km (15.5 mi.)*
– Large moving vessel (RCS 1,000 m²): 32.0 km (19.9 mi.)*
* Maximum targets per scan: 700
* False Alarm Rate (FAR): 1 false alarm per day
 *Minimum detectable target radial velocity: 0.37 km/h (0.23 mph)
* HP version fitted with M10S antennas

Coverage
* Instrumented maximum range: 2, 5, 8, 16 or 32 km (1.2, 3.1, 5.0, 9.9 or 19.9 mi.)
* Instrumented minimum range: less than 10 m (33 ft.)
* Azimuth scan angle: 90° (B402), 180° (B422), 270° (B432) or 360° (B442) horizontal e-scan
* Elevation beam: 10° or 20° vertical beamwidth
* Fastest scan time (for 90°): 1 s
* Target Output & Identification
* Data format: QZ (custom, open-standard data format) or XML over TCP/IP
* Target output port: available for cueing of pan/tilt-mounted cameras and thermal imagers
* Doppler audio modes: optional
* Connectivity & Software
* Main I/O interface (for radar control and target data): 10/100 Ethernet network interface
* Auxiliary I/O interfaces: RS-232 and RS-422 control lines, opto-isolated control/status inputs and isolated switched contact outputs
* Software (SDK): API software library (Windows) and generic Interface Control Document (ICD) are both available to System Integrators

Electrical
* Battery/regulated-PSU input range: from 12 V to 28 V (DC)
* Vehicle supply input range: from 12 V to 24 V (DC)
* Power consumption (from 12 V regulated-PSU)*: 38.4 W (average)
* Endurance*: 10 to 12 hours continuous operation from dual 2590-type batteries
* SP version

Physical, Environmental & Reliability
* External dimensions of radar unit(s) (W x H x D)*: 666 mm x 503 mm x 128 mm** (26.2 in. x 19.8 in. x 5.0 in.**)
* Weight of main radar unit (approx.)*:
- Wide-band (WB): 25 kg (55 lb.)
- Narrow-band (NB): 27 kg (60 lb.)
* Weight of auxiliary radar unit(s) (approx.)*
- Wide-band (WB): 21 kg (46 lb.)
- Narrow-band (NB): 24 kg (53 lb.)
* Operating temperature: from -32° C to +60° C (from -25° F to +140° F) Note: extended operating temperature version available
* IP rating: IP66 (dust tight and protected against powerful water jets)
* MIL-HDBK-217-F: 10,000
* In-service reliability (estimated): in excess of five years (zero maintenance)
* excluding antennas, mountings and solar shield
** depth of narrow-band radar units is 133 mm (5.2 in.)

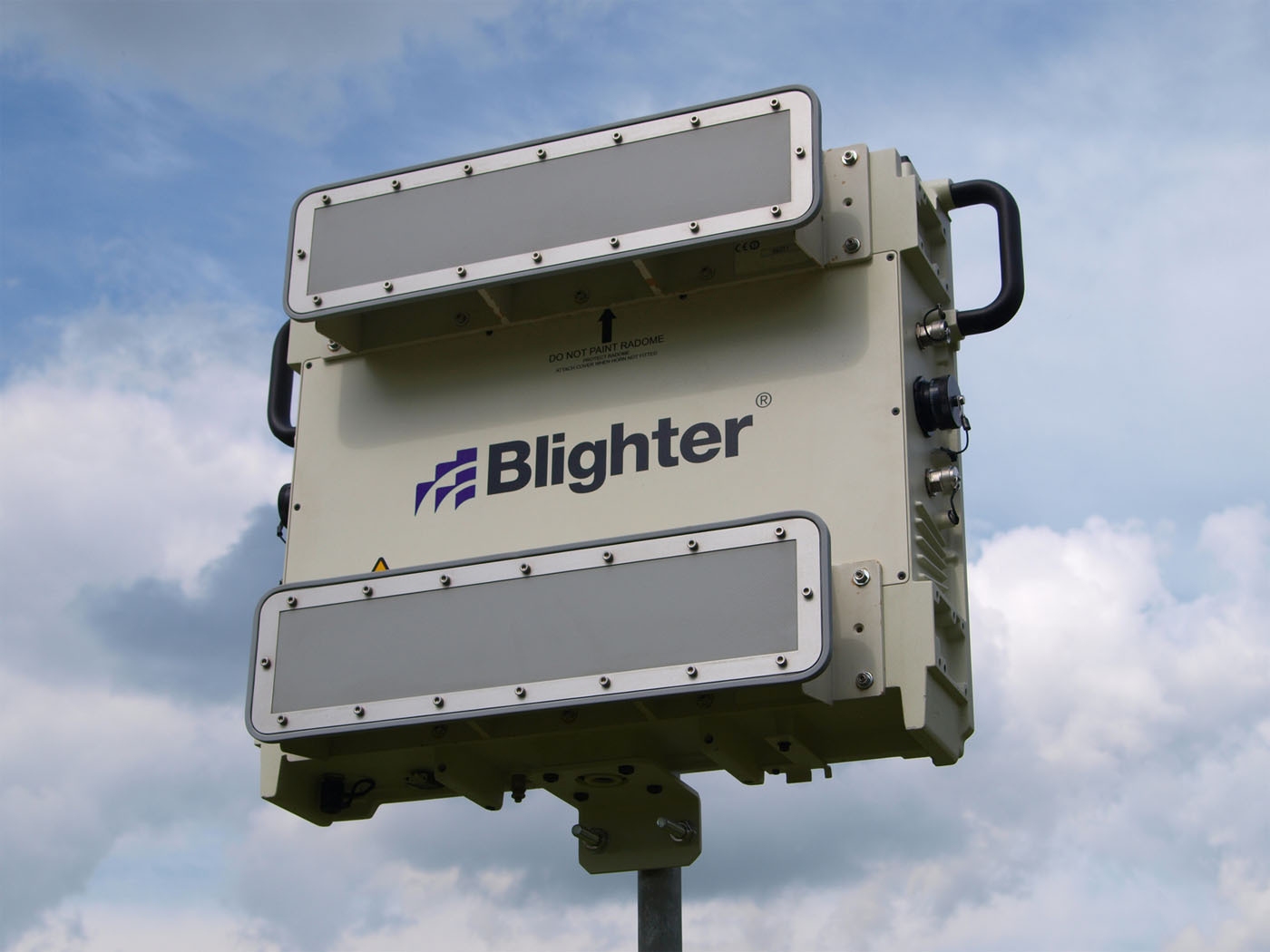

Blighter B400 Series Ground Surveillance Radar
