4.3" Wireless Monitor & Camera system
Key Specifications

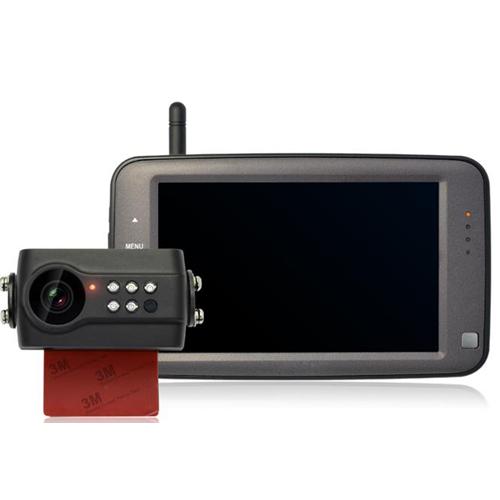

2.4GHz 4.3” Wireless Monitor & Camera System
Model no: MTR-CM43WK
MONITOR SPEC:
- 4.3 inch digital Panel
- Display Resolution: 480xRGBx272dot
- Brightness: 500cd/㎡
- Contrast: 500:1
- Viewing angle: up50°,down70°,left70°,right70°
- Color System: PAL/NTSC
- Reverse warning yardstick
- Richwave chipset with 1CH solution
- Effective transmission distance: 20 meter
- Ideal for light vehicles in length around 10 meters
- Operating temperature: -20℃ to +70℃
- Storage temperature: -30℃ to +80℃
- Power voltage: DC5V-32V(960mA-180mA)
- Power consumption: Max 6W
CAMERA SPEC:
- 1/3.7” PC 3030 image sensor
- Video system: NTSC/PAL
- Effective pixels: 648x488
- Max. Frame Rate:
60 fps @ 640x480, YCbCr, 54Mhz
60 fps @ 640x480, Bayer, 27Mhz
60 field @ 720x240(288), YCbCr, 27Mhz
30 fps @ CVBS, 27Mhz
- Lens: 2.5mm
- Viewing angle: 120ﾟ(D) / 90ﾟ(H)
- LED 850: 5 pcs
- LED effective distance: 5meter
- Waterproof: IP69
- Operating temperature:-20℃ to +70℃
- Storage temperature:-30℃ to +80℃
- Power voltage: DC10V-32V(420mA-220mA)
- Power consumption: MAX 7W
