Key Specifications
The ETRX357 module is a low power 2.4GHz ZigBee module, based on the latest Ember EM357 single chip ZigBeeTM / IEEE802.15.4 solution. It is designed to be integrated into any device without the need for RF experience and expertise. Utilizing the EmberZNet ZigBee stack, the ETRX357 enables you to add powerful wireless networking capability to your products and quickly bring them to market. The module’s unique AT-style command line interface allows designers to quickly integrate ZigBee technology without complex software engineering. For custom application development the ETRX357 series integrates with ease into Embers InSight development environment.

  • Small form factor, SMT module 25mm x 19mm Side
  • Castellations for easy soldering
  • Integrated chip antenna
  • Industries first ARM Cortex-M3 based family of ZigBee modules
  • Industry standard JTAG Programming and real time network level debugging via the Ember InSight Port
  • 192kB (ETRX357) flash and 12kbytes of RAM
  • Lowest Deep Sleep Current of sub 1µA and multiple sleep modes
  • Wide supply voltage range (2.1 to 3.6V)
  • Module ships with standard Telegesis AT-style command interface based on the ZigBee PRO feature set
  • Can act as an End Device, Router or Coordinator
  • 24 general-purpose I/O lines including analogue inputs (all GPIOs of the EM35x are accessible)
  • Firmware upgrades via serial port or over the air (password protected)
  • Operating temperature range: -40°C to +85°C

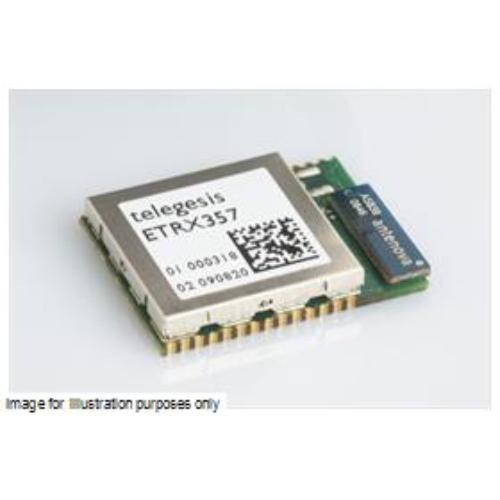

ETRX357 Zigbee module
