Key Specifications
• Professional IR Illuminator with electric variable angle technology (EVA Tech). It can support high-definition zoom camera control to adjust the beam angle. Also you can use an remote control to set up at ground side. The series solves the matching problem between traditional fixed angle IR Illuminator and zoom camera, achieves uniform and high intensity lighting synchronous linkage.
• It offers high efficiency image in various of applications and save stock costs for customers.
• The series provides waterproof and dustproof grade of IP68 and explosion-proof grade of IK10 to installation under harsh environment.
Professional Design
• Adapted with super brightness infrared LED to provide powerful infrared light at night
• IK10 degree of protection against mechanical impacts
• IP68 waterproof level
• Electric variable angle control via RS485 by zoom camera
• Remote control provides easy set up
• External input for IR ON/OFF
• External output for day/night switch
• Low failure rate is guaranteed by the professional in-house optimized independent circuit technology
• Flexible angle-adjustable bracket fit for various installation site.
• Robust cooling fin design is available to long term working at -40℃ to 55℃
• 50,000 hours lifetime of LED
• 5 years warranty
Technical Specification
LED Type 24pcs IR LED
Wavelength 850nm
Power Consumption Max. 80W
Beam Angle 10°-40°/ 40°-80°
IR Distance 140m-350m/ 50m-90m
Beam Shape Round
Auto ON/OFF by light sensor
Manual ON/OFF by remote control
Light Sensor Sensitivity 10/20/50/100% by remote control
IR Power Adjustment by remote control
Beam Angle Adjustment by RS485 PELCO-D or remote control
Input Voltage 24VDC ±10%, 24V AC(50/60Hz) ±10%
Operating Environment -40℃ to 55℃
Working Temperature -40℃ to 55℃
Cable Length 1.5meter
Protection Level IK10, IP68
Working Humidity 90%
Color Black
Bracket Flexible U bracket
Net Weight 2.6kg
Gross Weight 3kg
Dimension 220*160*74mm
Packing Dimension 250*290*170mm
Model for selection
Model Beam angle IR distance

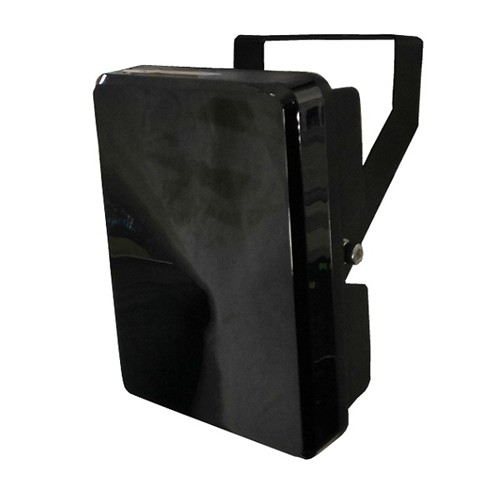

S-H24OS-1040-IR-B 10°-40° 350m-140m*
S-H24OS-4080-IR-B 40°-80° 90m-50m*
*IR distance is tested by Sony 1/3 CCD Camera.
To achieve the distance needed, please pay attention to your camera specification and lens before purchase. It is normal phenomenon that distance may vary due to different cameras and lens
