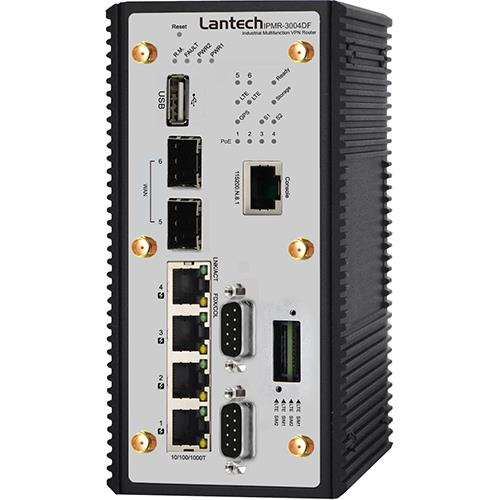

Lantech IPMR-3004DF Multi-function LTE Wireless Router
Key Specifications
● Up to 2 concurrent mobility for 3G/4G LTE Link&GPS(2L model/4 SIMs)
● Built-in 4 Gigabit Ethernet managed switch including4 PoE at/af w/budget 80W
● Federal Information Processing Standards (FIPS)-compliance**
● Managed Switch functions cover port management, QOS, VLAN, multicast, redundant ring and security function
● VPN router for Multi-site VPN, OpenVPN, L2TP over IPsec, IPsec, PPTP**, L2 over GRE , IPGRE
● Load Balancing built-in 5 mechanisms
● Optional EMMC Flash storage on-board**
● Support NAT and Firewall
● Support 2 RS422/RS485 ports with 2.5KV isolation or 2 RS232 ports
● Dual input voltage 9~60VDC (24V model)
● Vehicle E-marking* certificate
● Environmental monitoring for router inside info with voltage, current, temperature and total POE load; LTE graphic signal strength
● Editable login page of captive portal for hot-spot application
● Dual image firmware
● ITxPT compliant w/ ignition function*
*Future release **Optional
