Key Specifications
> Zoom camera (day and night 230X zoom)

> O.L.P.F (optical low pass filter) removable

> Signal system: PAL/NTSC

> Image sensor:

K-41CZ: 1/4-inch interline transfer Sony Exview HAD CCD

K-42CZ: 1/4-inch interline transfer Sony super HAD CCD

> Picture elements (H x V): 795 x 596 (PAL), 811 x 508 (NTSC)

> Scanning system: 625 lines/2:1 interlace (PAL), 525lines/2:1 interlace (NTSC)

> Sync system: internal/external

> Resolution: 480TVL

> Minimum illumination:

K-41CZ: 0.1 lux at F1.6 (color mode, 30IRE, SAGC);00.02 lux at F1.6 (B/W mode, 30IRE, SAGC), 0.002 lux at F1.6 (64X sense up, 30IRE, SAGC), 0 lux under IR illumination

K-42CZ: 0.5 lux at F1.6 (color mode, 30IRE, SAGC), 0.1 lux at F1.6 (B/W mode, 30IRE, SAGC), 0.01 lux at F1.6 (64X sense up, 30IRE, SAGC), 0 lux under IR illumination

> O.L.P.F removable: internal (auto switching)/external

> O.L.P.F change level adjustable:

K-41CZ: 0.02 to 15 lux adjustable

K-42CZ: 0.1 to 15 lux adjustable

> O.L.P.F change delay time: 5 to 8 seconds

> Diagonal angle: 58 (W) to 2.8 (T)

> Zoom speed: 4.2 seconds

> S/N ratio: over 50dB

> White balance: ATW 2500K to 9600K preset/manual

> Gamma correction: 0.45

> BLC function: auto on/off , 48 zones and weight adjustable

> AGC: super AGC 0dB to 36dB

> ALC: auto/fix

> Electronic shutter:

PAL: 1/50 to 1/100000 seconds

NTSC: 1/60 to 1/100000 seconds

> Fixed shutter: 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000

> Frame integration: 2X to 64X sense up adjustable

> Optical zoom: 23X optional zoom lens (F1.6 to 3.8, f = 3.6mm to 82.8mm)

> Digital zoom: 10X digital zoom

> Motor-zoom/focus/iris: 800,000 times life

> Focus: auto/manual

> Position: 64 preset memory positions (zoom/focus)

> Video output: composite output 1.0Vp-p at 75 ohms

> External control: RS-232

> S-Video output: Y/C output 1.0Vp-p at 75 ohms

> Communication baud rate: 9600bps

> Operating temperature: -10 to 50 degrees Celsius

> OSD function: optional and digital zoom, focus, iris, gain, white balance, BLC, maskalarm, motion, sense up, position

> Storage temperature: -20 to 70 degrees Celsius

> Operating humidity: 10% to 85% RH

> Power supply: DC 12V +/- 1V, 2.5W maximum

> Dimensions (W x H x L): 70 x 63.6 x 123.5mm

> Weight: 380g

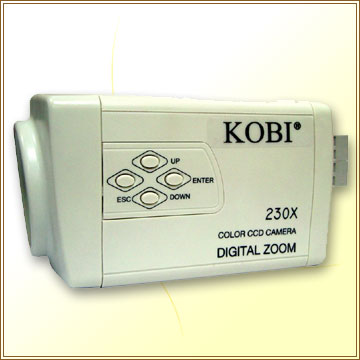

 Color CCD Camera with Day and Night 230X Zoom [K-41/42CZ]
